Post a picture of your Assisted Visual Setup.

  • Please log in to reply
337 replies to this topic

#1 smokin oakum

smokin oakum

    Surveyor 1

  • *****
  • Posts: 1529
  • Joined: 24 Sep 2007
  • Loc: Wilmington, NC

Posted 12 December 2007 - 10:12 PM

All the other forums have a place to do this. Why not us? I don't have my camera yet, but I will post a picture as soon as I get it. This will also allow people see different ways to place monitors, and other thing used along with the types of telescopes used.

Neil

#2 b1gred

b1gred

    Enginerd

  • *****
  • Posts: 16902
  • Joined: 01 Apr 2004
  • Loc: Castle Rock, CO 6677' MSL

Posted 12 December 2007 - 10:37 PM

Yep, and I'll "sticky" it at the top!! Provide pix and they'll be here...

#3 smokin oakum

smokin oakum

    Surveyor 1

  • *****
  • Posts: 1529
  • Joined: 24 Sep 2007
  • Loc: Wilmington, NC

Posted 12 December 2007 - 10:44 PM

Yep, and I'll "sticky" it at the top!! Provide pix and they'll be here...


Thanks Randy!

#4 b1gred

b1gred

    Enginerd

  • *****
  • Posts: 16902
  • Joined: 01 Apr 2004
  • Loc: Castle Rock, CO 6677' MSL

Posted 12 December 2007 - 10:47 PM

:ubetcha: :bow: At your service...

#5 kent

kent

    Viking 1

  • -----
  • Posts: 854
  • Joined: 16 Feb 2006
  • Loc: P.E.I. Canada

Posted 12 December 2007 - 11:21 PM

Well this is the best I can do under these conditions :coldday:

But look at the fun I'll have when the weather clears up :jump:

Attached Files



#6 kent

kent

    Viking 1

  • -----
  • Posts: 854
  • Joined: 16 Feb 2006
  • Loc: P.E.I. Canada

Posted 12 December 2007 - 11:24 PM

And a close up:

Attached Files



#7 b1gred

b1gred

    Enginerd

  • *****
  • Posts: 16902
  • Joined: 01 Apr 2004
  • Loc: Castle Rock, CO 6677' MSL

Posted 12 December 2007 - 11:40 PM

Which system is that?

#8 midway199

midway199

    Vostok 1

  • -----
  • Posts: 108
  • Joined: 21 Apr 2004
  • Loc: Illinois

Posted 12 December 2007 - 11:46 PM

Here's the humble beginning to my indoor control room. :cool: I'll be observing inside with the scope sitting outside (duh!) and eventually, the scope will be in a dog house that flips off when I'm ready to observe.

The clunker equipment includes laptops for scope control, star charts, internet image lookups, and musical ambiance. A PC with CRT monitor is used for image capture, and the 12" b/w monitor is primary observing screen. I use a program called Synergy to share a keyboard and mouse across all systems. The Little People "Fill-n-Go!" garage is for keeping me occupied between exposures. :p

Attached Files



#9 midway199

midway199

    Vostok 1

  • -----
  • Posts: 108
  • Joined: 21 Apr 2004
  • Loc: Illinois

Posted 12 December 2007 - 11:49 PM

Here's the newest addition, a NexStar 11 with the StellaCam 3.

Attached Files



#10 kent

kent

    Viking 1

  • -----
  • Posts: 854
  • Joined: 16 Feb 2006
  • Loc: P.E.I. Canada

Posted 13 December 2007 - 12:09 AM

Which system is that?


Sorry about that. :o It's the older version Mallincam Hyper Color. Which I've not yet become familiar with. Attached to a Meade LX200R 14". And all the talk about high resolution monitors and all I have used so far is a old 12" RCA T.V. :foreheadslap:

#11 Astro Sky

Astro Sky

    Vendor (Astro Sky)

  • *****
  • Vendors
  • Posts: 684
  • Joined: 06 May 2006
  • Loc: Iowa, Louisiana, USA

Posted 13 December 2007 - 12:10 AM

Celestron 11 & Orion 100mm refractor on CI-700 Eq. mount.
B/W MallinCam PRO ULTRA upgraded 2.1 to 56 sec. with peltier cooler and wires remote control.Radio Shack 9" DVD player ,also DVD recorder.

James G.

Attached Files



#12 Paul Milligan

Paul Milligan

    Apollo

  • *****
  • Posts: 1240
  • Joined: 03 Mar 2006
  • Loc: 54°12.0' N; 4°25' W

Posted 13 December 2007 - 06:04 AM

There are some real nice setups here.
Here are a few photos of my rig.

Takahashi Epsilon 160 Astrograph
GStar-EX CCD Integrating Video Camera
DigitalMedia MP4 Recorder.

Keep the photos coming!

Attached Files



#13 Paul Milligan

Paul Milligan

    Apollo

  • *****
  • Posts: 1240
  • Joined: 03 Mar 2006
  • Loc: 54°12.0' N; 4°25' W

Posted 13 December 2007 - 06:05 AM

Side on View

Attached Files



#14 JAT Observatory

JAT Observatory

    NOT a Wimp

  • *****
  • Posts: 9454
  • Joined: 20 Feb 2005
  • Loc: In the Primordial Soup

Posted 13 December 2007 - 08:41 AM

This camera does duty as an electronic finder. It is a Mallincam attached to a modified Stellarvue F50 finder. The finder is attached to a 10" SCT OTA.

Posted Image



Heres is my video camera that actually gets the most use. It is a GStar-EX B&W that has a 2.6mm lens attached. It use to monitor where the scope is pointing and where the dome's slit is. It is attached to the side of a SV102APO.


Posted Image

#15 Snaproll

Snaproll

    Fly Me to the Moon

  • *****
  • Posts: 5095
  • Joined: 20 Feb 2004
  • Loc: Green Bay

Posted 13 December 2007 - 10:28 AM

Very nice pictures! :jump:

I went the "bottom feeder" route a couple times. I used VNC via wireless to control my laptop out by the scope which was running autostar and an LPI, from the ancient PC in my office. Kinda funny thinking that the scope was about 50 feet away, yet the computer control was going miles and miles to some server, who knows where, back to my router and then broadcast to my laptop out in the cold... while I was inside toasty warm.

Like I say, a bottom feeder application, but it worked, I could see and image Saturn remotely and control the scope :)

#16 AstroTasmania

AstroTasmania

    Lift Off

  • -----
  • Posts: 14
  • Joined: 12 Dec 2007
  • Loc: Tasmania Australia

Posted 13 December 2007 - 04:22 PM

Hi,

Here is a link to what I was able to do because I had a suitable video system. I was able to broadcast via the Discovery Channel, the total lunar eclipse 28th August, live as it happened together with two other widely separated observatories, to the rest of the world. Follow the link and follow each hyper link for the full story.And how The Imaging Source in Germany, sponsored my part by donating a 1/2" colour firewire camera.

http://www.astronomy...nce-channel-tv/

Eventually, a DVD will be produced of the entire project.

Links to various albums which show many of my video / telescope systems:

http://picasaweb.goo...m/AstroTasmania

Clear skies...
Shevill

Attached Files



#17 Douglas

Douglas

    Vendor - Night Vision Astronomy

  • *****
  • Vendors
  • Posts: 343
  • Joined: 21 May 2007
  • Loc: Pound Ridge, NY

Posted 13 December 2007 - 05:39 PM

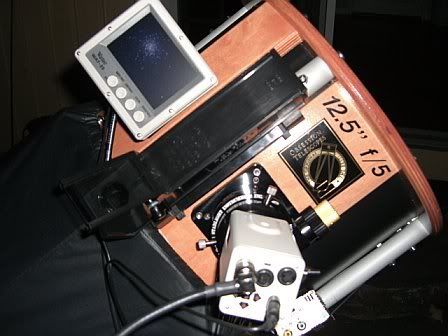

12.5" Obsession with ArgoNavis, ServoCat, Wireless 232 Starry Night Pro, Wireless Video Transmission transmitting to 50" plasma in living room, WATEC Monitor on Upper Tube Assembly ... I'm Lovin It !!!

Posted Image

#18 Douglas

Douglas

    Vendor - Night Vision Astronomy

  • *****
  • Vendors
  • Posts: 343
  • Joined: 21 May 2007
  • Loc: Pound Ridge, NY

Posted 13 December 2007 - 05:45 PM

Here's M27 on the 50" Plasma in the Living Room

Posted Image
  • markc2 likes this

#19 JimW

JimW

    Viking 1

  • *****
  • Posts: 696
  • Joined: 31 Aug 2004
  • Loc: Mansfield, Texas

Posted 13 December 2007 - 05:50 PM

WOW! What kind of skies are you dealing with? If you tell me suburban light pollution, it could cost me a lot of money (after Christmas).

#20 midway199

midway199

    Vostok 1

  • -----
  • Posts: 108
  • Joined: 21 Apr 2004
  • Loc: Illinois

Posted 13 December 2007 - 05:52 PM

Douglas, can you describe your wireless video setup? Particularly how you position the transmitter and receiver to get a clean signal? I purchased one from B&H recently and was not impressed, so I decided to return it.

#21 Douglas

Douglas

    Vendor - Night Vision Astronomy

  • *****
  • Vendors
  • Posts: 343
  • Joined: 21 May 2007
  • Loc: Pound Ridge, NY

Posted 13 December 2007 - 06:40 PM

Jim, you're gonna hate me ... that shot was during an almost full moon! And ... it was my first shot with the camera!!

Matthew: I purchased the wireless video transmitter/receiver from www.vfmstore.com and purchased optional high gain antenna but often I use the small stock antenna with no problem. I am sending the signal about 40 feet, to my living room. The signal goes through the exterior wall of the house but I also have a window and keep the receiver near the window. There isn't direct line of sight but the transmission is still strong and stable. I have used the system without having the receiver near the window and it still works. You can order the transmitter/receiver on a 2.4 or 1.2 Ghz signal.

I hate the cold but love the winter targets, this is the way to go when it's too cold out there.

- Doug

#22 MikeML

MikeML

    Viking 1

  • *****
  • Posts: 509
  • Joined: 09 Oct 2004
  • Loc: NJ

Posted 13 December 2007 - 07:40 PM

Here's my Watec 120N set up as a guide camera on a William Optics 66SD. I feed the video into my laptop with a generic video to USB converter even though I was given a B&W CRT with the camera. The CRT is just too much bulk to haul around.
I've used the camera for guiding, out reach and to capture some images (just to show what it can do).
It's a fun piece of equipment.

Attached Files



#23 Gord

Gord

    Surveyor 1

  • *****
  • Posts: 1686
  • Joined: 06 Jan 2004
  • Loc: Toronto, ON, Canada

Posted 13 December 2007 - 08:48 PM

Here's an old picture of my MallinCam Pro (B&W) in action one frosty November evening a couple years ago. Mars was the target at the time if I recall correctly.

Posted Image

It's really cool to see video astro start to be discovered by so many people (and get it's own place on the forum too!)!! :jump: I've had a lot of fun in the almost 4 years I've been using mine, and I'm still on ancient tech compared to what is available today.

If anyone is interested in seeing the various things I've done with mine (using various different scopes), have a look in the photos section of the forums here:

http://www.cloudynig...er=2069&cat=500

Some really cool looking setups you guys all have BTW! :bow:

Cheers,

-Gord

#24 b1gred

b1gred

    Enginerd

  • *****
  • Posts: 16902
  • Joined: 01 Apr 2004
  • Loc: Castle Rock, CO 6677' MSL

Posted 14 December 2007 - 12:36 AM

Is that ice and frost on your scope?

#25 kent

kent

    Viking 1

  • -----
  • Posts: 854
  • Joined: 16 Feb 2006
  • Loc: P.E.I. Canada

Posted 14 December 2007 - 04:11 AM

Welcome to Cloudy Nights Shevill! Great video of the eclipse! Boy looks like you have your hands full there in that picture. Could you give us a rundown on all your toys there? Is that a fork mounted square reflector? :question: Like I said glad you could join us here at C-N
