Does anyone have a picture of a CG5 mounted to a metal pier?

I am getting ready to purchase a pier and I am a little confused.

Al

#2 Buhlig

Buhlig

    Mariner 2

  • *****
  • Posts: 276
  • Joined: 03 Dec 2007

Posted 08 May 2009 - 06:34 PM

Not exactly metal...but could be fabricated from steel..<grin>. I have some rough spec drawings if you want them...I can email directly if you send me a PM.

Sean

Attached Files



#3 Buhlig

Buhlig

    Mariner 2

  • *****
  • Posts: 276
  • Joined: 03 Dec 2007

Posted 08 May 2009 - 06:52 PM

Here's what the top looks like without the mount...

Attached Files



#4 LateViewer

LateViewer

    Apollo

  • *****
  • Posts: 1215
  • Joined: 17 Nov 2005

Posted 09 May 2009 - 07:11 AM

Sean,

Thanks for posting your photo's

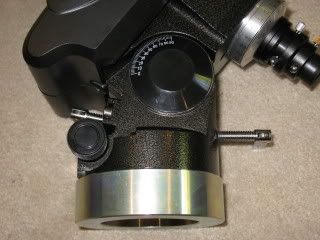

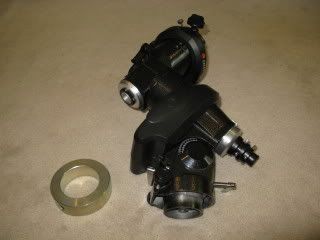

What I found was a collar on the McMaster's web site that will do the trick. I do not have your level of machining capability.


Posted Image

Posted Image

And then I will bolt from underneath.

Al

#5 Buhlig

Buhlig

    Mariner 2

  • *****
  • Posts: 276
  • Joined: 03 Dec 2007

Posted 09 May 2009 - 09:16 AM

pretty sweet! what's the thought on locking down the azimuth adjuster? Are you going to have to tap a small thread? Do you have a link to the website you referenced? Does he machine CGE plates? LOL

Sean

#6 LateViewer

LateViewer

    Apollo

  • *****
  • Posts: 1215
  • Joined: 17 Nov 2005

Posted 09 May 2009 - 12:24 PM

I will probably drill and tap for the azimuth adjuster or may try to go without as the plate I will be attaching to rotates.

Here is the cat. page. As you will see I just searched for a collar of the right size.

McMaster Collar Web Page

#7 DCS357

DCS357

    Explorer 1

  • *****
  • Posts: 65
  • Joined: 20 Oct 2008

Posted 09 May 2009 - 07:01 PM

Hello, Been thinks of building a pier myself. Was wondering of the collars which one did you choose. The Black-Oxide, Zinc-Plated or Aluminum or Stainless Steel.
That seems to be a good idea on mounting the CG5 without some fancy machining :-)

thanks
don c

#8 LateViewer

LateViewer

    Apollo

  • *****
  • Posts: 1215
  • Joined: 17 Nov 2005

Posted 09 May 2009 - 11:09 PM

This is zinc plated steel.

There is a page where you make choices as to diameter and clear hole which in turn leaves only limited choices in other areas. Thickens of collar for example.

McMaster is great. I got something else form them that I am going to use on my 12.5" String Truss as part of an update/rebuild of that telescope.
