Mirror dust cover for my 14.5" reflector

  • Please log in to reply
22 replies to this topic

#1 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 16 February 2012 - 04:23 PM

I've been looking for a long time for something to use as a mirror dust cover in my dob. I've searched through tupperware, planter drip pans, pizza trays, etc. and have come up empty. I was out shopping at an art supply store and as I usually do I look for things that were made for something else that can be used in my astronomy hobby. Well I didn't find what I was looking for but it started the old noodle thinking. My son, who is off at grad school studying music left me a voice mail. He's a percussionist which got me thinking about drums, drum shells, and finally, voila, drum heads. There was a Guitar Center in the same shopping center, I walked in and asked for a 15" drum head, my mirror is 14.5" and I thought a 16" would be too big. I got home this afternoon and took a look at it and it seems perfect, but I thought the edge would mark up the edge of the mirror. By chance the three mirror clips and posts were the perfect size to hold up the drum head about 1/4" above the mirror. All I need to do is put a knob in the middle to make it easier to put on and take off. Total cost: $14 bucks! :grin:

Attached Files



#2 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 16 February 2012 - 04:24 PM

Don't know how some of you guys post more than one photo in a single post. :p

Attached Files



#3 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 16 February 2012 - 04:26 PM

I mean it was a perfect fit. No mods at all. :cool:

Attached Files



#4 Mirzam

Mirzam

    Skylab

  • *****
  • Posts: 4434
  • Joined: 01 Apr 2008
  • Loc: Lovettsville, VA

Posted 16 February 2012 - 04:42 PM

Makes me want to reach for the drumsticks...

Maybe you should add a warning label on the front :lol:

JimC

#5 Pinbout

Pinbout

    Cosmos

  • *****
  • Posts: 7597
  • Joined: 22 Feb 2010
  • Loc: nj

Posted 16 February 2012 - 04:44 PM

Makes me want to reach for the drumsticks...



now I'm hungry... :lol:

#6 John K

John K

    Surveyor 1

  • -----
  • Posts: 1678
  • Joined: 26 Dec 2005
  • Loc: Vernon BC Canada

Posted 16 February 2012 - 06:33 PM

Don't forget the drum case for the UTA. :waytogo:

#7 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 17 February 2012 - 07:52 AM

Don't forget the drum case for the UTA. :waytogo:


Hi John,

I made a hat box ala Kriege that has protected the UTA since before the scope was finished. It's getting pretty beat up and a drum case would be an easy replacement if I don't want to go through the trouble of making a new one.

#8 rick-SeMI

rick-SeMI

    Mariner 2

  • -----
  • Posts: 232
  • Joined: 08 Jan 2011
  • Loc: Michigan - USA

Posted 17 February 2012 - 09:46 AM

Don't know how some of you guys post more than one photo in a single post. :p


Very nice Jim. Much better than what I use.
It is an ice tub (as K-mart) calls it :)
I cut off the upper section where a pair of looped ropes were. Then added a larger drawer pull to the top center.

To post multiple pictures I upload the pictures to Photobucket.
I re-size them to 512 horizontal pixals with MS Paint prior to the upload to Photobucket.

Then I use notepad to copy the IMG Code.

Then when replying to the the forum, I copy and paste from notepad.
Usually to the bottom of my text.

I also do a preview prior to posting.
Didn't do that a few times and had to start over :(

Take care
Rick

Posted Image
Posted Image

#9 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 17 February 2012 - 11:27 AM

Hi Rick,

Your cover looks good. I was wondering how you were going to do that. I still haven't seen your scope in person and I'm looking forward to it.

As far as posting the pics I'm windows illiterate even though I use XP at work. Never had good luck web surfing using internet explorer. :p

#10 rick-SeMI

rick-SeMI

    Mariner 2

  • -----
  • Posts: 232
  • Joined: 08 Jan 2011
  • Loc: Michigan - USA

Posted 18 February 2012 - 05:45 PM

Jim,
I have had some practice doing this over the years.
Mainly from my Metal Detecting hobby.
In the early 90's had to learn some HTML (Hypertext Markup Language) in order to post text, color, pictures, etc.
Now a lot of it is built in if you know where to look.
That comes from using it, as in practice, practice :)

BTW, I am using a mirror shroud made from a piece of Cemetube. Similar to Sonotube, but made of plastic.

Attached Files



#11 Dick Jacobson

Dick Jacobson

    Viking 1

  • -----
  • Posts: 898
  • Joined: 22 Dec 2006
  • Loc: Plymouth, Minnesota, USA

Posted 20 February 2012 - 10:55 AM

I brought a tape measure into Target and measured the diameter of all the laundry baskets and toy baskets. (People probably thought I was nuts and they were right.) I found a polyethylene toy basket that was just the right diameter for my 14" mirror. I cut the bottom out of it and it has worked great to keep the mirror clean. The photo shows the mirror cover and what remains of the basket, which I occasionally use when I need a small piece of polyethylene.

Attached Files



#12 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 20 February 2012 - 01:24 PM

That great Dick. That's basically what I was originally looking for, but I had in in my head to use a lid, not cut it out of the bottom and use that as a cover.
Very resourceful. :bow:

#13 greenglass

greenglass

    Viking 1

  • *****
  • Posts: 804
  • Joined: 22 Jan 2006
  • Loc: Hamilton. Ontario, Canada

Posted 06 April 2013 - 11:16 AM

a frisbee fits over an eight inch mirror

#14 jpcannavo

jpcannavo

    Viking 1

  • *****
  • Posts: 924
  • Joined: 21 Feb 2005
  • Loc: Ex NYCer, Now in Denver CO!

Posted 06 April 2013 - 06:39 PM

Magnetic Plexiglass cover, attaches to my mirror cell, clears mirror by a 1/4 inch or so. Not a complete seal, but helps.

Attached Files



#15 jpcannavo

jpcannavo

    Viking 1

  • *****
  • Posts: 924
  • Joined: 21 Feb 2005
  • Loc: Ex NYCer, Now in Denver CO!

Posted 06 April 2013 - 06:41 PM

In place, rare earth magnets hold it VERY securely

Attached Files



#16 jpcannavo

jpcannavo

    Viking 1

  • *****
  • Posts: 924
  • Joined: 21 Feb 2005
  • Loc: Ex NYCer, Now in Denver CO!

Posted 06 April 2013 - 06:45 PM

In full structure. Note First Contact film on ZOC mirror.

Attached Files



#17 timps

timps

    Ranger 4

  • -----
  • Posts: 311
  • Joined: 24 Feb 2013

Posted 06 April 2013 - 06:50 PM

If I wasn't an amateur astronomer as well as a percussionist, I would say "What a waste of a drum head." But as I am both I will say "What does the mirror sound like now?" ;) Good idea though.

#18 Mike B

Mike B

    Starstruck

  • *****
  • Posts: 9981
  • Joined: 06 Apr 2005
  • Loc: shake, rattle, & roll, CA

Posted 06 April 2013 - 11:16 PM

I've searched through tupperware, planter drip pans, pizza trays, etc. and have come up empty. I was out shopping at an art supply store and as I usually do I look for things that were made for something else that can be used in my astronomy hobby



Waytogo, JimMo! :waytogo: I do the very same thing... amazing what can be cross-over'd to astro use! :lol:

In fact, i have two sons who are "percussionists" (aka "drummers")... so i might take a look at that idea myself. Seems like a *sound* concept. ;)

#19 nevy

nevy

    Viking 1

  • *****
  • Posts: 605
  • Joined: 07 Feb 2012
  • Loc: UK

Posted 30 April 2013 - 07:11 PM

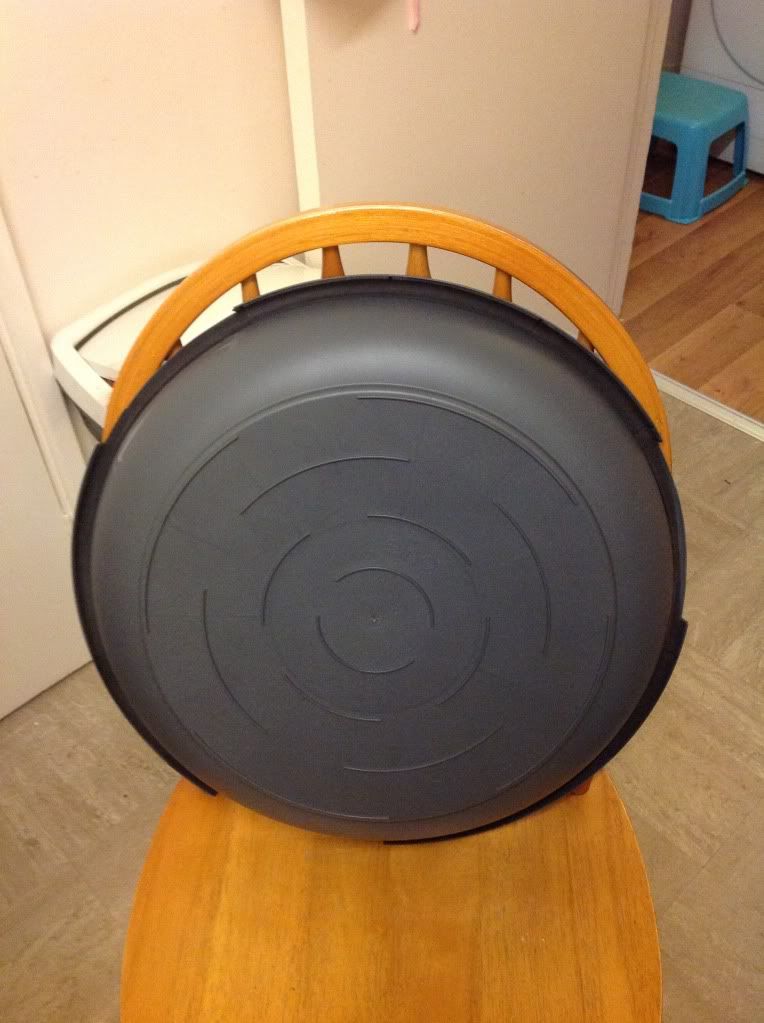

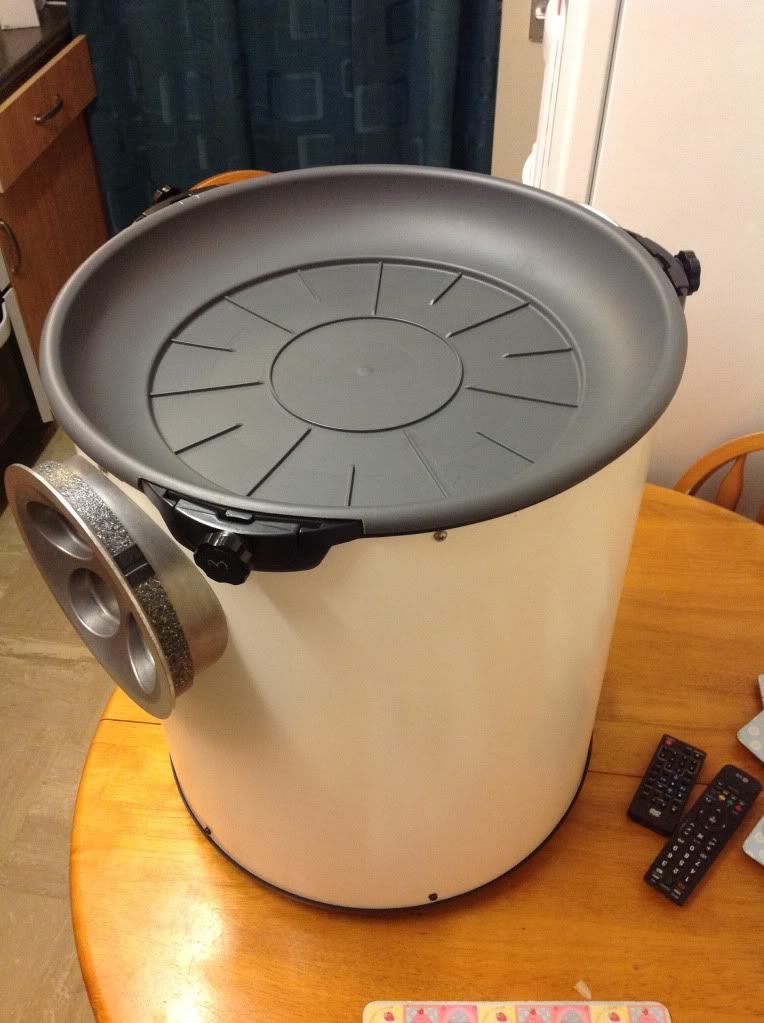

This is what I use , it's a big plant pot tray from the local garden centre , a bit of carefull cutting & a sheet of foam rubber & some double sided sticky tape makes it airtight & well protected from falling objects,
[image]http://Posted Image[/image]

[image]http://Posted Image[/image]

#20 GeneT

GeneT

    Ely Kid

  • *****
  • Posts: 12655
  • Joined: 07 Nov 2008
  • Loc: South Texas

Posted 30 April 2013 - 08:12 PM

While waiting for cool-down, you can play a few drum rolls while waiting for Saturn to rise. :grin:

#21 JimMo

JimMo

    I'd Rather Do It Myself

  • *****
  • Posts: 5051
  • Joined: 08 Jan 2007
  • Loc: Under the SE Michigan lightdome

Posted 01 May 2013 - 05:20 PM

Wow, a thread brought back from the dead. :grin:

After using the drum head for a while now I can say my mirror is much less dusty than without it and can go much longer between cleanings. I was using the Dave K. recommendation of the clean terry cloth towel draped directly on the mirror surface but never felt comfortable doing it. :p

#22 gmartin02

gmartin02

    Viking 1

  • *****
  • Posts: 848
  • Joined: 11 Apr 2005
  • Loc: Santa Clarita, CA

Posted 03 May 2013 - 03:08 AM

I also made a cover out of Plexiglass, cut with a table saw & a router.

Attached Files



#23 lamplight

lamplight

    Vanguard

  • *****
  • Posts: 2498
  • Joined: 18 Sep 2012
  • Loc: western MA, U.S.

Posted 09 May 2013 - 05:17 PM

i love the drumhead, i play as well and might even have one the right size... unfortunately my mirror isnt in a box or tube so still experimenting..
