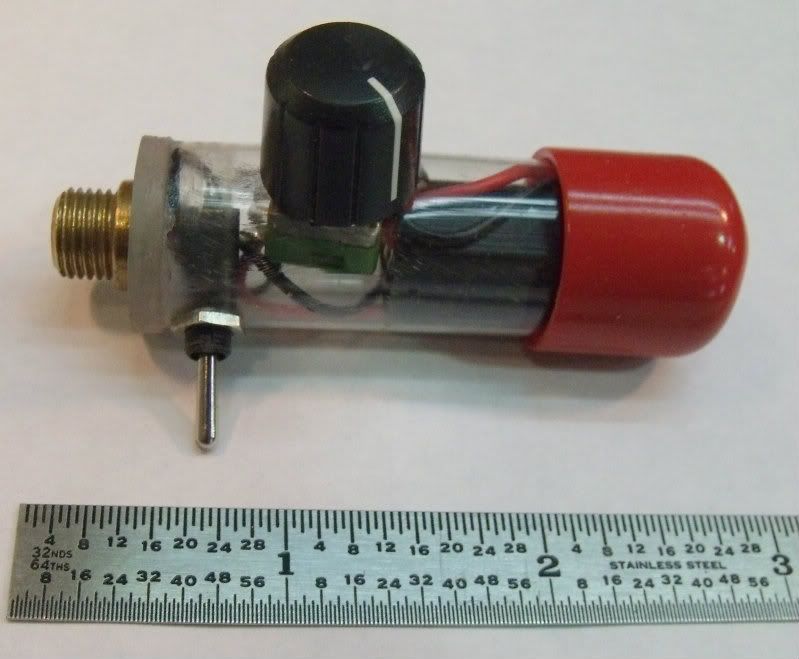

DIY reticle illuminator. The junk bin strikes again! Plastic tube that used to hold an end mill. Air fitting end. Potentiometer from broken audio compressor.Mini switch and battery holder from the Shack.

Posted Image

#2 Mirzam

Mirzam

    Skylab

  • *****
  • Posts: 4459
  • Joined: 01 Apr 2008
  • Loc: Lovettsville, VA

Posted 14 November 2012 - 08:57 AM

Nice!

Moral of the story: Never throw anything away that might be useful for making a telescope thingy. (This includes pretty much everything).

JimC

#3 tcmzodiac

tcmzodiac

    Viking 1

  • -----
  • Posts: 585
  • Joined: 11 Nov 2011

Posted 14 November 2012 - 09:03 AM

Indeed!

#4 glennnnnnn

glennnnnnn

    Mariner 2

  • *****
  • Posts: 257
  • Joined: 20 Oct 2009
  • Loc: San Diego, CA

Posted 14 November 2012 - 10:11 AM

Great Gizmo in a concise little package. Cool sort of funky-tech design.
(Also, what Mirzam said about never throwing anything useful away... I need more shipping containers!)
-Glenn

#5 tim53

tim53

    Cosmos

  • *****
  • Posts: 9497
  • Joined: 17 Dec 2004
  • Loc: Highland Park, CA

Posted 14 November 2012 - 10:23 AM

Nice!

Moral of the story: Never throw anything away that might be useful for making a telescope thingy. (This includes pretty much everything).

JimC


Or as the late Peter Manly once said "anything that isn't nailed down or on fire is fair game for telescope parts"

Tim

#6 tcmzodiac

tcmzodiac

    Viking 1

  • -----
  • Posts: 585
  • Joined: 11 Nov 2011

Posted 14 November 2012 - 10:45 AM

@ Tim...excellente'!

#7 Gastrol

Gastrol

    Apollo

  • *****
  • Posts: 1359
  • Joined: 04 Nov 2011
  • Loc: los angeles

Posted 14 November 2012 - 12:37 PM

Nice see-through tube! Tu-be or not Tu-be...

#8 tcmzodiac

tcmzodiac

    Viking 1

  • -----
  • Posts: 585
  • Joined: 11 Nov 2011

Posted 14 November 2012 - 01:18 PM

Thanks! One of the longer pill bottles would work I suppose. Would be neat to keep the prescription sticker on it (provided its not an embarrassing medication!) :)

"The Cialis Illuminator"...NOT! :)

#9 John Jarosz

John Jarosz

    Astro Gearhead

  • *****
  • Posts: 3229
  • Joined: 25 Apr 2004
  • Loc: Fairfax, Iowa

Posted 14 November 2012 - 04:08 PM

Every time I throw out something that I've been 'saving' for eons, that guarantees I will have a need for it the following week.

Happens over and over. (I know, I should stop throwing thing out).

#10 tcmzodiac

tcmzodiac

    Viking 1

  • -----
  • Posts: 585
  • Joined: 11 Nov 2011

Posted 14 November 2012 - 04:11 PM

It the convincing of the spouse that can be a challenge. "No way am I throwing out that _____!"

#11 Geo.

Geo.

    Gemini

  • *****
  • Posts: 3065
  • Joined: 01 Oct 2008
  • Loc: Upstate NY

Posted 18 November 2012 - 11:40 AM

Air fitting end.


I've oft wondered what thread was used on these things. I'm assuming by "Air fitting end" you are using a fitting used to connect air hoses or such? Or is it a Schrader value?

If so, Schraders come in two threads: metric are 7.7 mm OD, thread root diameter is 6.9 mm × 0.794 mm pitch and imperial: 0.305 in OD, thread root diameter 0.271 in × 32 tpi (which really appear to be the same thread).

#12 droid

droid

    rocketman

  • *****
  • Moderators
  • Posts: 7209
  • Joined: 29 Aug 2004
  • Loc: Conneaut, Ohio

Posted 18 November 2012 - 02:55 PM

Just don't leave it on longer than four hours....

Nice job though, its amazing what people with enough imagination can create.

#13 Ed D

Ed D

    Gemini

  • *****
  • Posts: 3123
  • Joined: 30 Apr 2010
  • Loc: Sunny South Florida

Posted 18 November 2012 - 07:37 PM

Thanks! One of the longer pill bottles would work I suppose. Would be neat to keep the prescription sticker on it (provided its not an embarrassing medication!) :)

"The Cialis Illuminator"...NOT! :)


HMMMMM...I wonder if you have to call your doctor if you observe for more than 4 hours? :o

Ed D

#14 tcmzodiac

tcmzodiac

    Viking 1

  • -----
  • Posts: 585
  • Joined: 11 Nov 2011

Posted 18 November 2012 - 07:45 PM

Thanks! One of the longer pill bottles would work I suppose. Would be neat to keep the prescription sticker on it (provided its not an embarrassing medication!) :)

"The Cialis Illuminator"...NOT! :)



Cymbal crash!

Its a very small 12v battery and the current draw is tiny. We'll see how long it lasts. As for the thread...havent measured it yet, but no prob. Im modding a 25mm Kellner (or erfle) to take the illuminator and an etched glass reticle; Ill just drill a hole and tap it to suit.

HMMMMM...I wonder if you have to call your doctor if you observe for more than 4 hours? :o

Ed D



#15 Luigi

Luigi

    Fly Me to the Moon

  • *****
  • Posts: 5320
  • Joined: 03 Jul 2007
  • Loc: MA

Posted 19 November 2012 - 01:20 PM

Nice.

FWIW, I just have a piece of Scotch magic tape over the illuminator hole in my finder and direct my red flashlight into it to varying degrees to control brightness, and/or waggle it to blink for seeing dim objects.
