Lightening strike!!!

  • Please log in to reply
29 replies to this topic

#1 rimcrazy

rimcrazy

    Mariner 2

  • -----
  • Posts: 280
  • Joined: 03 Mar 2012
  • Loc: Overgaard, AZ

Posted 16 July 2014 - 01:03 PM

So it is monsoon season up here on the Mogollon Rim in Arizona. Prime season for lightening. My residence here is in an area that continually gets lightening strikes especially during this time of the year. I knew it was not a matter of IF we got hit, just when so about a year ago I contracted with a local lightening protection contractor to put lightening rods on my home/garage and observatory.

Well Sunday of this week we had some real storms roll in with lots of lightening. Nothing hit but there was a lot of activity. Monday rolls around and it's around noon and we can just see thunderheads building up to the east. I was inside and my son was out in my garage working in the office located out there. It was getting dark but still actually quite light outside. The rain was just a drizzle when out of absolutely no where BAM! a bolt came down and hit one of the rods on the garage. The sound was deafening and the light overwhelming. The bolt must have split also as a neighbor with a metal airplane hanger and horse barn very close by reported a hit also. For me, since I had protection, there was no damage to the building or electronics what so ever. I do have a CAT5 cable buried between the structures (the garage is a separate building) and the port on my 16 port switch that connects the garage to the house did pop. All of the other ports are actually fine but that one port blew. Had I installed the grounded ethernet surge protector that my contractor gave me out there for specifically that reason I probably would not have had that problem either. It was actually on my "To Do" list for this week. It will definitely get done now.

Being that my residence is located in a rural location, all of our heating is propane. My home was built using black pipe for all of the internal propane feeds but my garage/studio was constructed using flexible gas pipe. That pipe is fine and meets code but it does not have the current handling capability of black pipe. As such there have been instances where, when a strike occurs in the wrong place and the current travels across one of these flexible pipes, they heat up enough to melt with the resulting propane explosion. Not good. My contractor made sure that all of my gas lines are bypassed with grounding conductors to prevent this kind of catastrophe.

The few curious things about this strike was that there was absolutely no warnings. We could see a storm coming but until our strike there had been no thunder. Second, if I had to judge we were not "in the thick of the storm". If anything we were right on the leading edge of the approach of the storm when it hit. Had you asked me 1 minute before the strike if it was safe to go outside I never would have given it a second thought. While I did not see it specifically, I do know we were hit. The doorway right under where the rod is located smelled of burnt electronics/ozone for a good 10 minutes. At first my son and I were concerned that there was a fire in the attic but we checked and all was fine. Other than the blown port there was no damage to anything that I have been able to find. Our neighbor was not so lucky. Their security camera was blown as was a lot of the outlets in the stable. They are very fortunate that a fire did not start as the stable was occupied by two of their horses and of course there is lots of hay inside. The poor animals must have been scared out of their wits.

A last curiosity. I had been leaving the dome electronics on while I'm up here, even in daytime. In a static mode it does not take that much power and one less thing to turn on at night. Well I won't be doing that anymore. After the storm passed I went out to check on things. The main PC for some reason was locked up but after a reboot was fine. The curious thing was my dome was happily spinning around, and around, and around and around....... and had been doing so since the strike had hit. It is a TI dome and I'm using the TI dome controller. Again, after a reboot all was fine but had I not been here I would most likely have burned out the motors. "Won't do that again" as they say.

#2 amicus sidera

amicus sidera

    Skylab

  • *****
  • Posts: 4001
  • Joined: 14 Oct 2011
  • Loc: East of the Sun, West of the Moon...

Posted 16 July 2014 - 01:35 PM

Lightning is funny stuff, and very unpredictable; sometimes it almost seems to have a mind of its own. Glad you got away with so little damage.

Over the years I've found it a good idea to physically unplug anything that isn't being used at that moment, since as you've experienced, lightning doesn't always knock before entering. It's a pain, but not so much as replacing electronics would be.

#3 hbastro

hbastro

    Vostok 1

  • -----
  • Posts: 114
  • Joined: 25 Apr 2013
  • Loc: CA, USA

Posted 16 July 2014 - 01:36 PM

Wow! That is impressive! Will you post some pictures of your lightning protection system. I've done careful grounding and surge protection on the data lines solar panels, etc, and have had strikes close without issues but never a direct hit... I think there are many of us who would appreciate learning more...

Best regards,
Dave

#4 azure1961p

azure1961p

    Voyager 1

  • *****
  • Posts: 10239
  • Joined: 17 Jan 2009
  • Loc: USA

Posted 16 July 2014 - 10:13 PM

Ive read lightning can travel 25 miles from point of origin. Yikes. Glad all is ok.

Pete

#5 herrointment

herrointment

    Skylab

  • *****
  • Posts: 4367
  • Joined: 12 Mar 2011
  • Loc: North of Hwy. 64

Posted 16 July 2014 - 11:58 PM

Lightning is not unexpected off the anvil of a thunderstorm.

#6 Christopher Erickson

Christopher Erickson

    Vanguard

  • *****
  • Moderators
  • Posts: 2141
  • Joined: 08 May 2006
  • Loc: Waikoloa Village, Hawaii

Posted 17 July 2014 - 12:11 AM

Impressive story!

When designing the grounding system for observatories, I use the Motorola R56 standard specification for communication sites. It has very comprehensive chapters on grounding for lightning protection and grounding for communications.

http://www.ronet.co.... Guidelines.pdf

#7 Calypte

Calypte

    Apollo

  • -----
  • Posts: 1089
  • Joined: 20 Mar 2007
  • Loc: Anza, California

Posted 17 July 2014 - 12:23 AM

Rim, lightning struck our house in Anza, CA, on Apr 18. Back in April in CN I described the damage (mainly fried home electronics), and I won't repeat it now. But the ozone/burned electrical smell you describe was quite noticeable for several days. The scariest part is that there's a scorched spot on the floor below a hub that links all of the weather equipment. The bolt had struck the anemometer mast. There have been discussions about the value of lightning rods in this forum in the distant past, and I seem to recall that one experienced person suggested that they were useless or worse. But a couple of weeks after our lightning experience, I attended Adam Block's workshop at Mt. Lemmon, and there were lightning rods all over the place up there, on the buildings and on the domes.

#8 hbastro

hbastro

    Vostok 1

  • -----
  • Posts: 114
  • Joined: 25 Apr 2013
  • Loc: CA, USA

Posted 17 July 2014 - 02:59 AM

Thanks Chris, that is an excellent reference.

I have a small counterpoise style grounding field with 4 interconnected grounding rods and a large copper plate suspended from the wall of my battery shed on ceramic insulators as a single point ground. Also multi stage surge protectors on the phone-DSL line, solar panels, 110V, etc.

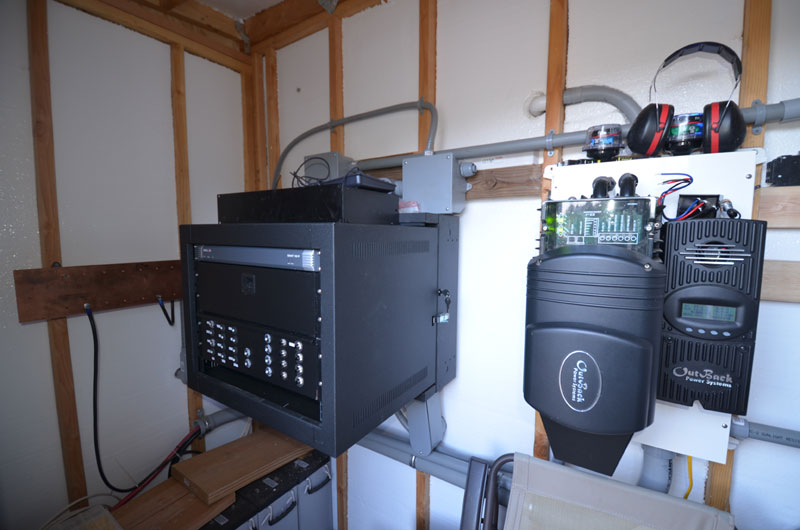

Notice the copper plate, single point ground, on the wall to the left in the attached image. Notice the surge protectors on the electrical panel to the right. There is a set of ear protection on one of the surge protectors, no pun intended.

Like most others I have a lot of sensitive equipment. Mine is nearly 4 hours drive from home, so no running around unplugging things. I can and have during close monsoons shut everything down. I have phone activated relays. The published strike probability for my site is 0.1/year/KM, this is low. As we all know it only takes is one nearby strike to be set back years and a lot of $$$. This near miss seems a good opportunity to learn more from other astronomers. Someone surviving a direct strike seems worth study, I think its a combination of good practices and luck... Thanks again for the reference! Best regards, Dave
Posted Image

#9 DeanS

DeanS

    Gemini

  • *****
  • Posts: 3242
  • Joined: 12 Jul 2005
  • Loc: Central Kentucky

Posted 17 July 2014 - 07:58 AM

I am installing an m1OYASIS system in my observatory. He highly suggests a UPB to turn off power to at least the roof motor. Apparently someone had a lighting strike and it shorted out something and his roof rolled off during the storm. That would add insult to injury. I keep it unplugged until I it all set up properly.

Dean

#10 rimcrazy

rimcrazy

    Mariner 2

  • -----
  • Posts: 280
  • Joined: 03 Mar 2012
  • Loc: Overgaard, AZ

Posted 17 July 2014 - 08:18 AM

I will post some pic's today. Rained all day yesterday.

I think that there is a LOT of miss-information when it comes to lightening protection as well as probably a lot of sub-standard installations. A bad or improper installation is the same as not having one at all. Contrary to some beliefs, lightening protection does not increase your odds on getting a hit, it simply protects you as best as possible if/when you do get hit. That being said, it is still a bit of a *BLEEP* shoot. No one can guarantee that there will be zero loss or damage. You can't predict lightening, you can only mitigate against it. One has to decide if the cost is justified. I certainly believe, in my case, it was more than justified. My son was in that building when it was hit. Actually sitting almost below the strike and right below a ceiling mounted propane heater. Had I not had that protection things could have been extremely bad, to the extent that I really don't want to think about it.

I had 3 structures protected. There are about 10 rods on my garage/studio, around the same number on the house and one on a large 30' custom tower that my son constructed for my observatory. Total cost from my contractor was just over $8K. The contractor I used has been in business a long time and has done numerous commercial and residential installations. (The picture of the tower next to the observatory on the residential page is my observatory). As in most things each person has to judge the risk/reward for themselves.

A few things of note to. I'm an electrical engineer and as such liked to think I knew about what was required before the contractor came out. After spending about 10 minutes with him going over what was needed, it became quite clear to me, I did not have a clue. There are a LOT of i's to be dotted and t's to be crossed to do a job like this properly. Now in 20/20 hindsight what was done is quite clear and makes sense but if you want to do it yourself I would thoroughly research the subject and/or hire an experienced licensed contractor to do the job correctly.

Like I said, I will post some pictures later today.

#11 Starman27

Starman27

    Skylab

  • *****
  • Moderators
  • Posts: 4272
  • Joined: 29 Jan 2006
  • Loc: Illinois, Iowa

Posted 17 July 2014 - 08:48 AM

Lightening can strike 21 miles away from the storm. Very little warning.

#12 rimcrazy

rimcrazy

    Mariner 2

  • -----
  • Posts: 280
  • Joined: 03 Mar 2012
  • Loc: Overgaard, AZ

Posted 17 July 2014 - 08:59 AM

Lightening can strike 21 miles away from the storm. Very little warning.


I'd always heard that but now seeing is certainly believing. Quite scary actually. :shocked: :shocked: :shocked:

#13 CharlesW

CharlesW

    Apollo

  • -----
  • Posts: 1229
  • Joined: 01 Nov 2012
  • Loc: Chula Vista & Indio, CA

Posted 17 July 2014 - 09:48 AM

I was at my local library a couple of years ago killing time. I ran across a very dusty book written ages ago by Patrick Moore. It was about building a home observatory. When he got to the dome section he wrote, and these are his words, not mine, "A dirty little secret of home domes is that they are lighting magnets. Manufacturers do nothing to fix this problem although they are well aware of it." Then he went on to mention that a copper mesh could be laid into the material of the dome to help with strikes. I think your efforts were admirable.

#14 johne

johne

    Messenger

  • *****
  • Posts: 471
  • Joined: 10 Nov 2006
  • Loc: Prescott, AZ.

Posted 17 July 2014 - 11:25 AM

From "The Science of Thunder"

"The vertical extent of a CG lightning channel averages 3-4 miles (5-6.5 km) with a maximum height of about 6 miles (9.6 km). Most CG flashes originate in thunderstorms between 15,000-25,000 feet (4,500-7,600 m) above ground level in the mixed water and ice region. The record horizontal distance of a cloud flash is 118 miles (190 km) that occurred in the Dallas-Ft. Worth area."

#15 rimcrazy

rimcrazy

    Mariner 2

  • -----
  • Posts: 280
  • Joined: 03 Mar 2012
  • Loc: Overgaard, AZ

Posted 17 July 2014 - 12:38 PM

Ok, here are some detailed pictures of all of the lightening protection on my home, garage and observatory.

These are the rods on the house. As you can see these are spaced at about every 12'. This alone is what dispells the rumor that rods attract more hits. These rods are designed such that they protect a sphere with a radius of approx 6' - 8'. Outside of that radius the protection falls off rapidly, thus the need for multiple rods across a roof line.

Posted Image

This shows the rods on the studio/garage. If you look close you can see the aluminum cable that ties the rods together going down the right side of the roof line. I believe the rod either on the far right or one of the rods on the heater exhaust vent tubes just to the left was where the hit took place. As you can see, no visible damage and close inspection would show no discoloration.

Posted Image

Here is my observatory with the associated tower. The rod is on the north side. You can't see from this image but looking north there are very large ponderosa's so having the tower there really does not interfere with my observing as I can't see much in that direction anyway without doing major tree surgery, which I do not wish to do.

Posted Image

Here are some images of the feeders that go to ground. One image has a ruler in the photograph to give scale. That cable is 1/2" diameter aluminum stranded cable. They all go to 1.5'x1.5' copper plates buried about a foot down in the ground. The observatory not only has a plate but there is a 1/2" copper cable buried about 8" down all around the building structure.

Posted Image

Posted Image

The image below also shows one of the many industrial surge protectors that are on each electrical box. (the small black box under the power panel)

Posted Image

Surge protector on observatory power panel

Posted Image

Here are images of the shunts placed on the gas lines

Posted Image

Posted Image

Posted Image

These are pictures of the Ethernet and RG6 satellite feed protectors

http://ooobservatory...hernetShunt.jpg

I have two 8 port switches in the observatory. Each one has these types of protectors. This is what I neglected to attach in my garage (on the to do list...... too late) and what most likely caused the port to pop on the 16 port switch in my house.

http://ooobservatory...teFeedShunt.jpg

#16 hbastro

hbastro

    Vostok 1

  • -----
  • Posts: 114
  • Joined: 25 Apr 2013
  • Loc: CA, USA

Posted 17 July 2014 - 12:58 PM

Excellent, thank you so much for taking the time to post these images and your description. Very nicely done.. Best regards, Dave

#17 piaras

piaras

    Viking 1

  • -----
  • Posts: 809
  • Joined: 26 Jan 2009
  • Loc: Niagara Region

Posted 18 July 2014 - 08:54 PM

A few years ago, I was walking the dog towards home. A lot of heavy clouds and low cloud deck.

Walking, walking, walking, Snap, BANG. Lightening struck the utility pole about 40 ft behind us. Dog was home in seconds! It was the one and only bolt that day. A few seconds earlier and who knows.

Also had a strike on the neighbors tree, about 70 ft from my frt door. I only lost the modem on the PC. Everything was shutdown at the time as I was looking out the window at the rain and light show. In the morning, we found pieces of the tree blasted into the ground a few inches deep! The tree was totally severed about half way up and there was lumber all over the yard.
Pierre

#18 BrianCSmyrna

BrianCSmyrna

    Lift Off

  • -----
  • Posts: 14
  • Joined: 05 Jun 2012
  • Loc: Blue Ridge, GA

Posted 19 July 2014 - 08:30 PM

Lightning is scary stuff and hard to completely protect against. I had a recent experience where a nearby strike to a tree induced an electrical current and damaged electronic equipment (laptop and other computer equipment) that was not plugged in or connected to any hard wiring (AC, CAT 5, USB, etc) in any way. This can be particularly damaging to low voltage equipment like most of the astronomical equipment we use and rely upon. Oddly enough, nothing that was actually plugged into anything hard-wired was damaged. I'm not entire sure how you protect against that aside from building a Faraday cage around the observatory, which is darn near impossible.

#19 rimcrazy

rimcrazy

    Mariner 2

  • -----
  • Posts: 280
  • Joined: 03 Mar 2012
  • Loc: Overgaard, AZ

Posted 20 July 2014 - 06:47 AM

.... building a Faraday cage around the observatory, which is darn near impossible.


Check out the sixth picture down from the top. Not impossible but I can assure you not cheap. The contractor that did my installation did this installation.

#20 Deven Matlick

Deven Matlick

    Vendor - Criterion Machine Co. LLC

  • *****
  • Vendors
  • Posts: 174
  • Joined: 31 Dec 2005
  • Loc: Moatsville, WV

Posted 22 July 2014 - 04:48 PM

Some reading;

http://www.wiyn.org/.../WODC-03-04.pdf

http://www.lightning...hnicalPaper.pdf

#21 Christopher Erickson

Christopher Erickson

    Vanguard

  • *****
  • Moderators
  • Posts: 2141
  • Joined: 08 May 2006
  • Loc: Waikoloa Village, Hawaii

Posted 22 July 2014 - 05:21 PM

Some reading;

http://www.wiyn.org/.../WODC-03-04.pdf

http://www.lightning...hnicalPaper.pdf


Interesting reads!

I do take exception to one comment in the second document:

"Lightning behavior is arbitrary, capricious, random and stochastic."

It is obvious to me that each and every lightning strike always follows the laws of physics.

Therefore the correct statement should have read "Lightning behavior is dynamic, complicated and can difficult to predict."

I was part of a team that designed, built and maintained communications facilities on mountain tops in Alaska. We built everything to the signal and lightning grounding recommendations in the Motorola R56 design specification document. Every year those sites absorbed literally thousands of direct lightning hits with very-few, if any, lightning-related outages.

I hope this helps.

#22 rimcrazy

rimcrazy

    Mariner 2

  • -----
  • Posts: 280
  • Joined: 03 Mar 2012
  • Loc: Overgaard, AZ

Posted 22 July 2014 - 10:20 PM

Every year those sites absorbed literally thousands of direct lightning hits with very-few, if any, lightning-related outages.


Had I not missed two things, neglecting to put one of my two alarm systems on a UPS and the Ethernet surge protector in my garage, I do not believe I would have sustained any damage. Both of these errors have been corrected so hopefully, when Murphy decides to strike again, their will not be any damage.

#23 MJB87

MJB87

    Explorer 1

  • -----
  • Posts: 88
  • Joined: 17 Feb 2014
  • Loc: Talbot County, MD

Posted 23 July 2014 - 08:07 AM

Thanks to everyone for the good discussion here. It has caused me to decide to protect my new observatory from an adjacent ground strike by installing a whole-house electrical surge protector as well as ethernet surge protectors. Your expertise here may very well save my electronics some day.

Marty

#24 Christopher Erickson

Christopher Erickson

    Vanguard

  • *****
  • Moderators
  • Posts: 2141
  • Joined: 08 May 2006
  • Loc: Waikoloa Village, Hawaii

Posted 23 July 2014 - 12:18 PM

Thanks to everyone for the good discussion here. It has caused me to decide to protect my new observatory from an adjacent ground strike by installing a whole-house electrical surge protector as well as ethernet surge protectors. Your expertise here may very well save my electronics some day.

Marty


Don't forget lightning-protection grounding and shielding.

Surge protectors aren't enough.

#25 MJB87

MJB87

    Explorer 1

  • -----
  • Posts: 88
  • Joined: 17 Feb 2014
  • Loc: Talbot County, MD

Posted 23 July 2014 - 12:24 PM

Absolutely agree, Christopher. That is step two. Can't do that myself, however. Need to find a reputable contractor in the Maryland/Virginia/Delaware area. Suggestions welcome.

(One other thing I need to do is replace the cross-bracing wire cables with high-strength monofilament.)

Marty
