Relativist
Post Laureate
*****

Reged: 10/11/03

Loc: OC, CA, USA
Re: Post a picture of your Assisted Visual Setup. new [Re: Hemmi]
      #6165228 - 10/29/13 07:45 PM

Little reflector finder! My favorite!

Post Extras: Print Post   Remind Me!   Notify Moderator
budman1961
Pooh-Bah
*****

Reged: 02/25/11

Loc: Springfield, MO
Re: Post a picture of your Assisted Visual Setup. new [Re: Hemmi]
      #6165579 - 10/30/13 12:24 AM

Great setups everyone....lets keep them coming!

Post Extras: Print Post   Remind Me!   Notify Moderator
JimT
sage
*****

Reged: 08/13/05

Loc: Milky Way Galaxy
Re: Post a picture of your Assisted Visual Setup. new [Re: budman1961]
      #6165781 - 10/30/13 06:47 AM

Really cool set up Hemmi. The finder looks like it was your older main scope from the past. Good use of it now with that dob. Well done sir.

Post Extras: Print Post   Remind Me!   Notify Moderator
DonBoy
super member


Reged: 09/06/07

Re: Post a picture of your Assisted Visual Setup. new [Re: JimT]
      #6187521 - 11/10/13 08:57 PM Attachment (98 downloads)

I just added 8" to the pier and will need to update this image.

Edited by DonBoy (11/10/13 09:04 PM)


Post Extras: Print Post   Remind Me!   Notify Moderator
pufahl
newbie
*****

Reged: 11/09/06

Loc: Los Gatos, Ca.
Re: Post a picture of your Assisted Visual Setup. new [Re: budman1961]
      #6189128 - 11/11/13 05:49 PM Attachment (132 downloads)

First light a couple nights ago. 10" LX-200GPS F6.3 in alt/az, no guiding, no computer. I got up and running with my Mallincam Jr Pro in no time by looking at all the setups folks have posted here (thanks! i never would have thought to use the diagonal). I thought I would see what the Jr Pro would do without any filters or focal reducers.

I started with a few bright clusters like M15 and the views were pretty good though a little washed out in the core (i was not well enough versed in the finer settings). I was using sense up = 128x and with the wireless controller capturing exposures of 5 to 12 seconds. Cabling was using the supplied BNC cable and the RCA adapter to my monitor. About as simple as it gets which is what I wanted.

I moved on to see how deep it would go. I found M57 quite easily and it looks pretty good too. Just a tad bit of color but the skies were so light polluted i could not complain.

So on to something fainter for this test run: NGC 7465 (perhaps 60 degrees from the moon). When it slewed into view i was surprised to see 3 big bright galaxies and was thinking my GOTO was off. But after checking the charts, i found not only NCG 7465 (mag 12.8) but also 7464 (mag 13.3) and 7463 (mag 13.2). Sweet!

In the attached photo, you can actually see the 3 galaxies on the monitor, they were that bright!

Inspired and feeling that I had not given the Jr a real challenge, I decided to try deeper: 7467 (mag 15.6). It too showed up clearly in the monitor (Marshall 7" LCD). I could not believe it, this was EXACTLY what I was hoping to achieve in my back yard. Actually this was WAAAY better than what I expected could be done.

This is in light polluted silicon valley, mag 3 or 4 skies, with first quarter moon just setting behind some trees.

Pictured is the optic train: F6.3 OTA, William Optics Focuser, AP Maxbright diagonal, 1.25 reducer and the Mallincam Jr. Pro.

For my next outing I hope to add the F6.3 SCT reducer between the OTA and focuser. Hopefully I can get the diagonal out of the equation too. I hope to push the exposure times up too but I may be limited by the alt/az mount - we shall see.


Post Extras: Print Post   Remind Me!   Notify Moderator
pufahl
newbie
*****

Reged: 11/09/06

Loc: Los Gatos, Ca.
Re: Post a picture of your Assisted Visual Setup. new [Re: pufahl]
      #6189254 - 11/11/13 07:16 PM Attachment (119 downloads)

Mostly a test to see if a JPEG will display a little bigger than a PNG (and still under 200k).

And maybe someone wanted to see the setup and monitor a little betterÖ though the shot was taken 15ft away, with flash, using a *BLEEP* point and shoot camera. The image on the monitor was really nice.

I forgot to mention in the prior post, this Jr Pro has the EXView upgrade chip (I have never seen a Jr Pro with the standard chip so i cannot compare or comment on that front).

(yikes! all the dust on the forks show how long its been since its been worth setting up in the backyard).

I want to extend a big thank you to everybody for advancing video assisted astronomy. It has brought REAL astronomy to my backyard.

Back to lurking...


Post Extras: Print Post   Remind Me!   Notify Moderator
JimT
sage
*****

Reged: 08/13/05

Loc: Milky Way Galaxy
Re: Post a picture of your Assisted Visual Setup. new [Re: pufahl]
      #6189288 - 11/11/13 07:34 PM

pufahl

Nice set up enjoy it. Video astronomy is a great way to observer.

Edited by JimT (11/11/13 07:35 PM)


Post Extras: Print Post   Remind Me!   Notify Moderator
Andy1845
newbie


Reged: 03/31/14

Re: Post a picture of your Assisted Visual Setup. new [Re: pufahl]
      #6439828 - 03/31/14 05:01 PM

Hi pufahl,

nice setup! The 7" Marshall monitor is a 16:9 panel?!
The video out of the Mallincam is 4:3, so do you
use full screen?

Regards
Andy


Post Extras: Print Post   Remind Me!   Notify Moderator
pufahl
newbie
*****

Reged: 11/09/06

Loc: Los Gatos, Ca.
Re: Post a picture of your Assisted Visual Setup. new [Re: Andy1845]
      #6483078 - 04/23/14 11:09 AM

Yes its a 16:9 monitor. I run the component video right into it. I suspect it clips the edges because objects like the moon are round onscreen. I also suspect that the monitor could be set to not clip which would also change the scale of the objects smaller and show sidebars to fit the image. I am extremely happy with the way it works and have no interest in changing it.
I bought this monitor before i bought my Jr. Pro and compared it side-by-side against a Speco and it really blew the Speco away (i thought it would be the other way around).
I think this monitor is the same as the Lilliput equivalent though there are many different models available. Main thing i think is to get a resolution that is higher than VGA - some of these little monitors are 320x240 resolution which would be sub-optimal.

Hope this helps. I'm no expert but got lucky with this setup.

Why have people stopped posting pictures of their setups?


Post Extras: Print Post   Remind Me!   Notify Moderator
CONQUEST1
member
*****

Reged: 12/28/09

Loc: Peoria, Arizona
Re: Post a picture of your Assisted Visual Setup. new [Re: pufahl]
      #6498237 - 04/30/14 02:29 PM Attachment (45 downloads)

Here's mine.

Post Extras: Print Post   Remind Me!   Notify Moderator
Dragon Man
Carpal Tunnel
*****

Reged: 03/07/06

Loc: Snake Valley, Australia
Re: Post a picture of your Assisted Visual Setup. new [Re: CONQUEST1]
      #6499844 - 05/01/14 09:23 AM

Quote:

Here's mine.




Wow, that is cooooool!
Thanks for showing us.


Post Extras: Print Post   Remind Me!   Notify Moderator
jgraham
Postmaster
*****

Reged: 12/02/04

Loc: Miami Valley Astronomical Soci...
Re: Post a picture of your Assisted Visual Setup. new [Re: Dragon Man]
      #6500432 - 05/01/14 02:30 PM Attachment (31 downloads)

Iíve always used my cameras for both imaging and observing, but this is the first time that Iíve configured a system specifically for camera-assisted observing. The objective was a system that was simple, no guiding, and could operate exclusively off of batteries. After trying several different combinations of telescopes, mounts, and cameras I settled on my Orion Atlas fitted with a Meade SN6, my Baader modified Canon 550D, and a little HP Pavilion notebook running Windows 8.1 and Backyard EOS 3 Premium. The Atlas is a bit on the heavy side, but the SN6 is so over-mounted on this platform that it can easily take 60+ second exposures without guiding even in gusty winds. Although it can take reasonably long exposures, I pretty much stick with 30 second exposures at ISO 1600. This is a great system to hop around the sky with and if I come across something that I want to document a little more thoroughly Iíll grad a short set of images (typically 4) for stacking later. The modified Canon 550D gives me a generous field of view and with Canonís long exposure noise reduction the images are clean and well suited for real-time enhancement using Backyard EOSís display modes. The notebook does not have a built-in optical drive so the battery has a reasonably long operating life between charges (about 5 hours). I also have the option of operating this scope from inside my house, in which case I can run it all night long with AC. Another fun configuration is to mount a laser pointer on the scope and set it up next to my Lightbridge 16 as a laser designator and real-time finder chart!

Fun stuff!


Post Extras: Print Post   Remind Me!   Notify Moderator
Vondragonnoggin
Post Laureate
*****

Reged: 02/21/10

Loc: Southern CA, USA
Re: Post a picture of your Assisted Visual Setup. new [Re: jgraham]
      #6506059 - 05/04/14 02:51 PM

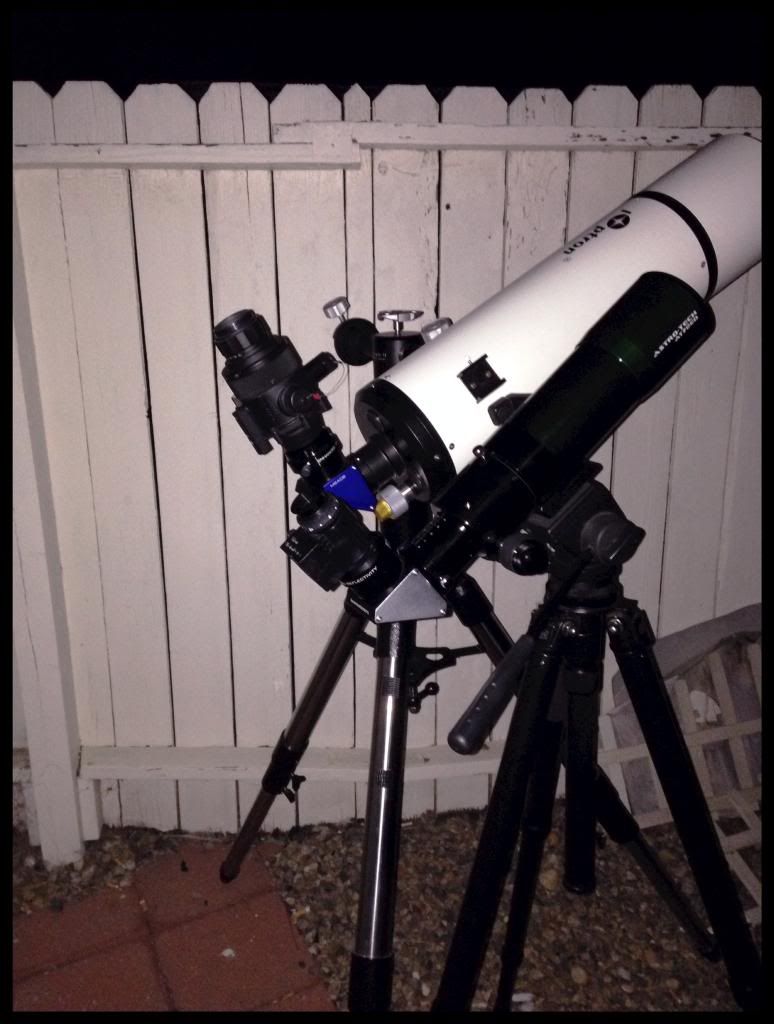

My 120ST with PVS-7 gen 3 biocular IIE:

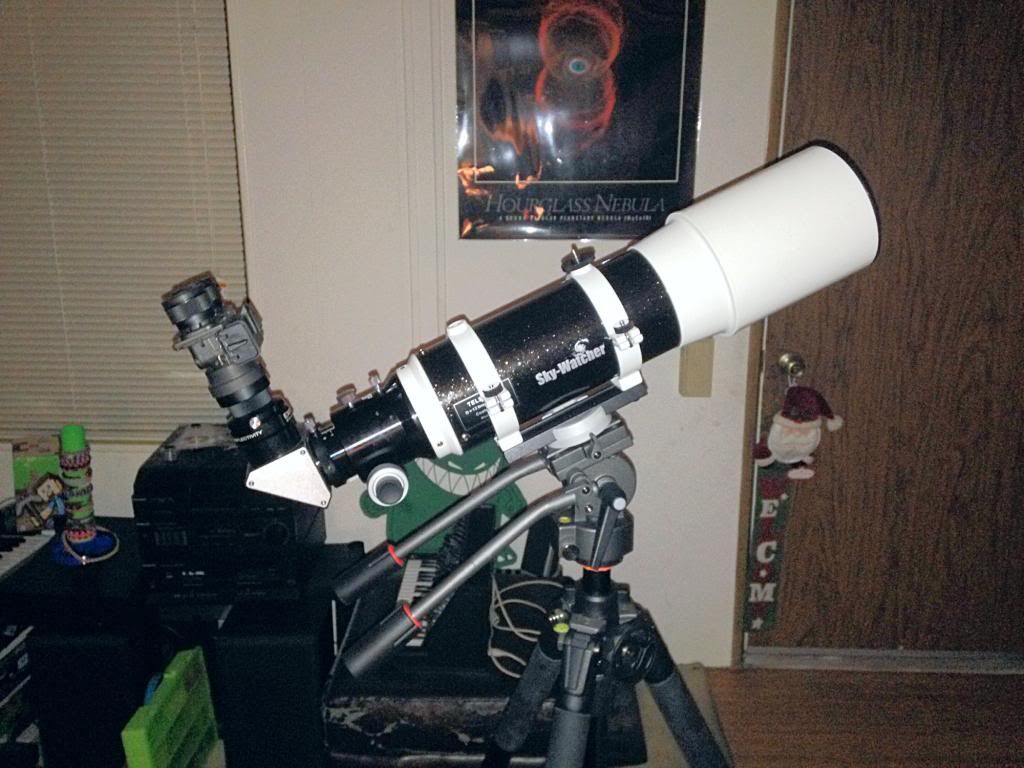

My AT72ED and Litton M942 Monocular gen 3 IIE. My iOptron Mak 150 with PVS-4 gen 3 monocular IIE:



Too much fun with good filters!



Post Extras: Print Post   Remind Me!   Notify Moderator
PBF
journeyman


Reged: 08/09/11

Loc: Utah USA
Re: Post a picture of your Assisted Visual Setup. new [Re: Relativist]
      #6551036 - 05/28/14 09:13 PM Attachment (16 downloads)

CPC 11 Alt Az.....

Post Extras: Print Post   Remind Me!   Notify Moderator
