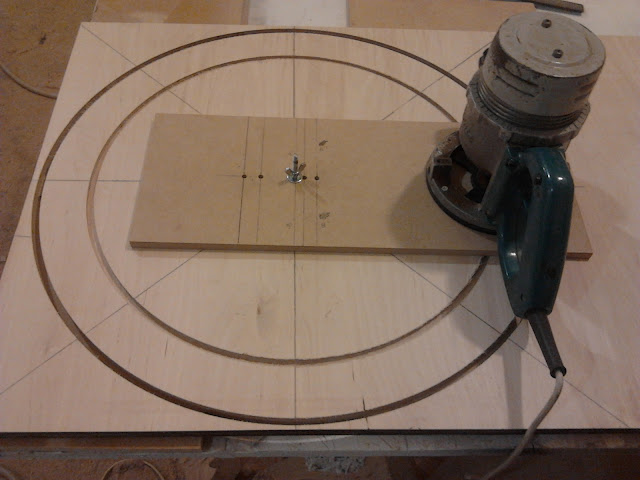

· Get a Cloudy Nights T-Shirt · Submit a Review / Article Click here if you are having trouble logging into the forums Privacy Policy | Please read our Terms of Service | Signup and Troubleshooting FAQ | Problems? PM a Red or a Green Gu… uh, User You are not logged in. [Login] Entrance · Main Index · Search · New user · Who's Online FAQ · Calendar Equipment Discussions >> ATM, Optics and DIY Forum Previous   Index   Next   Threaded   Pages: 1 | 2 | (show all) Manousos member Reged: 06/11/08 Loc: Crete-Hellas My handmade 16" Truss       #5636312 - 01/22/13 07:09 AM Edit   Reply   Quote Quick Reply   Hi there! I have recently started the construction of a truss dob at 16". This is my second scope project. The initial guidelines were retrieved from the Krieges book, but there are a lot of modifications since I wanted a more compact and transportable design. Since I leave in Greece there are no much choices about the optics, appart from 1-2 (expensive) companies. The most value/money option was a 16" F/4.5 GSO mirror with Hilux coatings. The secondary is a 90mm Orion Optics with hilux as well. So far the constructed parts are the mirror cell, spider and uta. Hope you enjoy it. Post Extras:       Manousos member Reged: 06/11/08 Loc: Crete-Hellas Re: My handmade 16" Truss [Re: Manousos]       #5636318 - 01/22/13 07:15 AM Edit   Reply   Quote Quick Reply   The Mirror Cell The Jig The triangles and bars The strip Supports The fan Testing with the mockup mirror Edited by Manousos (01/22/13 07:26 AM) Post Extras:       starman345 Wait, I'm Thinking Reged: 07/06/10 Loc: New Brunswick, Canada Re: My handmade 16" Truss [Re: Manousos]       #5636363 - 01/22/13 08:07 AM Edit   Reply   Quote Quick Reply   Hi, great to see you post your project here. From what I"ve read there is nothing wrong with those GSO mirrors, good choice. How thick is it? Mirror cell frame is steel, the rest is aluminum? I"m interested to see your ideas on making it more compact. Thanks for the pictures and hope to see more. Post Extras:       Manousos member Reged: 06/11/08 Loc: Crete-Hellas Re: My handmade 16" Truss [Re: starman345]       #5636553 - 01/22/13 10:12 AM Edit   Reply   Quote Quick Reply   Thank you! The thickness of the mirror is 45,3mm (1.8"). The mirror cell frame is steel and the triangles and bars are alouminum. Post Extras:       Manousos member Reged: 06/11/08 Loc: Crete-Hellas Re: My handmade 16" Truss [Re: Manousos]       #5636572 - 01/22/13 10:18 AM Edit   Reply   Quote Quick Reply   Next part the spider and secondary holder. Post Extras:       rboe Reged: 03/16/02 Loc: Phx, AZ Re: My handmade 16" Truss [Re: Manousos]       #5636596 - 01/22/13 10:28 AM Edit   Reply   Quote Quick Reply   Are you using a thread locking compound on the threads of the screws in the spider? Loctite in the name brand over here but there are others. Fingernail polish makes for a poor mans thread lock if you can't source a commercial version. I love the details on the spider; well done! Post Extras:       Achernar Postmaster Reged: 02/25/06 Loc: Mobile, Alabama, USA Re: My handmade 16" Truss [Re: Manousos]       #5636741 - 01/22/13 11:56 AM Edit   Reply   Quote Quick Reply   You've made your tailgate and mirror cell the same way I did, namely welded mild steel for the tailgate, 6061 T6 aluminum alloy for the bars and triangles. I used stainless steel allthread, screws and nuts for the rest. For collimation knobs, I used disks of aluminum alloy cut out with a hole saw. The sidepins were made from hardwood dowels I drilled lengthwise, a difficult opperation at that. The mirror clips I made from short left over pieces of the stock used for the bars to which the triangles are attached, with rubber padding between them and the mirror. You did a very nice job on your mirror cell and tailgate. You'll see the payoff evertime you look into the eyepiece. Taras Post Extras:       Manousos member Reged: 06/11/08 Loc: Crete-Hellas Re: My handmade 16" Truss [Re: Achernar]       #5638291 - 01/23/13 06:24 AM Edit   Reply   Quote Quick Reply   Well regarding the collimation knobs, at the beginning I was forced to use metal disks because the maximum width for full threads with embedded plastic knobs I found, was not enough. Although later on I realised that using metal disks is better because I could use these knobs as foots putting on the ground the mirror box without putting extra foot for that. Moreover using plastic knobs was a risk to broken them when I put the mirror box on the ground. At the other side plastic knobs are more aesthetic when view the back of the mirror cell. Regarding the locking compound, no I'm not using something. I have just tighten the bolts with the nuts. But its a good idea to put fingernail polish to secure the nuts Follows the UTA photos. The UTA ID is 17" and the width of the ring is 2" Post Extras:       Achernar Postmaster Reged: 02/25/06 Loc: Mobile, Alabama, USA Re: My handmade 16" Truss [Re: Manousos]       #5638323 - 01/23/13 07:22 AM Edit   Reply   Quote Quick Reply   I was thinking the same thing, plastic knobs tend to get broken off sooner or later. I would have rather welded a stainless steel disk to the collimation bolts, but I simply used a pair of stainless steel hex nuts to hold the disks in place, then dogged them tight. So far, they haven't a problem. Taras Post Extras:       Víctor Martínez sage Reged: 02/05/07 Loc: Cádiz - Spain Re: My handmade 16" Truss [Re: Achernar]       #5638756 - 01/23/13 11:43 AM Edit   Reply   Quote Quick Reply   Be careful with the weight of the upper or you will have to put a lot of wood and weight in the rocker box for counterbalance Post Extras:       Achernar Postmaster Reged: 02/25/06 Loc: Mobile, Alabama, USA Re: My handmade 16" Truss [Re: Víctor Martínez]       #5639307 - 01/23/13 05:47 PM Edit   Reply   Quote Quick Reply   There is a way around that problem. Once he has the mirror cell and the UTA finished, he can calculate how much torque each part of the telescope has. With that information, he will know how long to make the mirror box so he won't be adding ballast to either end to balance it. When I built mine, it was to my immense relief that I calculated everything correctly. Taras Post Extras:       Víctor Martínez sage Reged: 02/05/07 Loc: Cádiz - Spain Re: My handmade 16" Truss [Re: Achernar]       #5639371 - 01/23/13 06:21 PM Edit   Reply   Quote Quick Reply   Yes, but that does not mean that he can saves an unnnecessary excessive weight in the rocker box if he controls a little the excess upper weight. Post Extras:       Achernar Postmaster Reged: 02/25/06 Loc: Mobile, Alabama, USA Re: My handmade 16" Truss [Re: Víctor Martínez]       #5639384 - 01/23/13 06:30 PM Edit   Reply   Quote Quick Reply   True, that is why he can run the numbers before he builds the mirror box, so there won't be any surprises. Taras Post Extras:       starman345 Wait, I'm Thinking Reged: 07/06/10 Loc: New Brunswick, Canada Re: My handmade 16" Truss [Re: Achernar]       #5639423 - 01/23/13 06:56 PM Edit   Reply   Quote Quick Reply   Its also easy to calculate the weight of the secondary cage before building it, maybe Manousos has already done that since he is trying for a compact and easily transportable scope. Am I right in guessing you are making a single ring secondary cage? Post Extras:       Manousos member Reged: 06/11/08 Loc: Crete-Hellas Re: My handmade 16" Truss [Re: starman345]       #5640042 - 01/24/13 05:43 AM Edit   Reply   Quote Quick Reply   Actually becuase my theoretic calculations was not very precise in the real world and because of the reason that I want a compact design my approach has changed. No calculations for balancing at all. I just need to make the proper diameter of the altitude bearings by finding the center of gravity of the fully assemble scope. Assemble the main body of the scope and put weights on secondary cage in order to simulate finder scope, focuser, the heaviest eyepiece and telrad. The same weight of the primary mirror needs to be putted on the mirror cell. Then put horizontaly the scope and find the center of gravity by lifting from the trusses. The altitude bearings needs to be cutted in the radius from the cog to the place that will contact with the teflon pads. A cresent shape helps to keep light the bearings and if possible to be removable from the mirror box. I found this approach very precise at my first scope I built and my scope was the lightest possible without heavy counter weights at the back of the mirror or tall mirror box. Only some light weights in the front in order to counter balance the altitude bearings weight. Post Extras:       Manousos member Reged: 06/11/08 Loc: Crete-Hellas Re: My handmade 16" Truss [Re: Manousos]       #5747490 - 03/21/13 12:22 PM Edit   Reply   Quote Quick Reply   Hello again!! I have finished the scope but I didn't have the time to upload the photos. So Im sending you the remaining photos!! Have fun... Edited by Manousos (03/21/13 12:23 PM) Post Extras:       zjc26138 Loved By All Reged: 02/24/05 Loc: Mingo Junction, Ohio Re: My handmade 16" Truss [Re: Manousos]       #5747573 - 03/21/13 12:55 PM Edit   Reply   Quote Quick Reply   Dimitris, Simply Beautiful! Post Extras:       Bill Kocken sage Reged: 08/07/04 Loc: Coon Rapids, MN Re: My handmade 16" Truss [Re: zjc26138]       #5747767 - 03/21/13 02:48 PM Edit   Reply   Quote Quick Reply   That's a beautiful job. I'm almost inspired enough to rebuild my own 16"! Post Extras:       David Castillo Pooh-Bah Reged: 09/09/06 Loc: Carmel Valley, Ca Re: My handmade 16" Truss [Re: Bill Kocken]       #5747786 - 03/21/13 02:56 PM Edit   Reply   Quote Quick Reply   That is a thing of beauty ------ David Post Extras:       richard7 Not Quite Reged: 11/02/07 Loc: Sacramento Re: My handmade 16" Truss [Re: David Castillo]       #5748166 - 03/21/13 05:55 PM Edit   Reply   Quote Quick Reply   Absolutely beautiful. You've got something to be proud of. Post Extras:       Pages: 1 | 2 | (show all) Previous   Index   Next   Threaded   Extra information 8 registered and 21 anonymous users are browsing this forum. Moderator:  ausastronomer, richard7  Print Thread Forum Permissions       You cannot start new topics       You cannot reply to topics       HTML is disabled       UBBCode is enabled Thread views: 1986 Jump to *Announcements and News* -----   Cloudy Nights Announcements   Discussion of CN Articles, Reviews, and Reports   Celestial Events*General Astronomy* -----   Beginners Forum   General Observing and Astronomy   Outreach   Light Pollution*Equipment Discussions* -----   ATM, Optics and DIY Forum   Binoculars   Binoviewers   Cats & Casses   Classic Telescopes   Equipment   Eyepieces   Mounts   Observatories   Reflectors   Refractors    Video and Electronically Assisted Astronomy*Astrophotography and Sketching* -----   Beginning and Intermediate Imaging   Film Astrophotography   DSLR & Digital Camera Astro Imaging & Processing   CCD Imaging & Processing   Solar System Imaging & Processing   Sketching   Astro Imaging/Sketching Contest *Observing* -----   NEO   Planetary and Solar System Observing   Lunar Observing   Deep Sky Observing   Double Star Observing   Solar   Variable Star Observing and Radio Astronomy*Telescope Specific Forums* -----   Celestron NexStar    NexStar GPS / CPC Telescopes   Questar Forum   Meade ACF/RCX / LX / GPS    Meade ETX*Speciality Forums* -----   Arizona Science and Astronomy Expo   NEAF (Northeast Astronomy Forum) and NEAIC (Northeast Astro Imaging Conference)   AstroArt   Astronomy Clubs and Star Parties   Astronomy Software & Computers   AstroWebsites   Science! Astronomy & Space Exploration, and Others   Space Rocks   Stellar Media*Swap and Shop* -----   Shop and Swap Audio Components*CN Feedback and Vendor Announcements* -----   Vendor and Group Announcements*International Year of Astronomy 2009 - Forums are now closed.* -----   IYA Archive Info CN Forums Home
