Main purpose: singlet lens objective for building a 17th century style non-achromatic refractor.
Glass used: BK7 and float soda-lime ("plate glass").

All the lenses are handmade, grinded and polished individual, and those on BK7 substratum comes with a Ronchi test certificate. Diffraction limited.

A. Optical glass BK7 lenses
Type 1. Specifications:

- focal length (nominal) in G-channel: F = 2400mm (+10/-5mm);
- total diameter: Dt = ~49.5mm;
- center thickness: tc = ~8mm;
- high precision optical diameter: Duseful = 40mm;
- relative opening ("focal ratio"): N = F/Du = 60;
- the chromatic aberration coefficient: x = N/Du = 1.5
General: http://img717.images...bk7prezgene.jpg
Ronchi tests: http://img811.images...ntile13567c.jpg
Airy disc, crop100%, unprocessed: http://img844.images...ala58mcr100.jpg
From "A to Z": http://img98.imagesh...rismelorfor.jpg

PRICE for one lens = 25 euro.
Two lenses are still available (no.1&3).

For a more attractive offer, I add a second smaller BK7 lens (type 2) in the package:
Type 2. Specifications:
- focal length in G-channel: F = 1250mm;
- total diameter: Dt = ~35mm;
- center thickness: tc = ~6.5mm;
- high precision optical diameter: Duseful = 28mm;
- relative opening ("focal ratio"): N = F/Duseful = 44.64;
- the chromatic aberration coefficient: x = N/Duseful = 1.59
General: http://img29.imagesh...trlunetajpg.jpg
Airy disc, crop100%, unprocessed: http://img809.images...ala241md28m.jpg
(notice the Airy disc; USlim means the resolving power)

PRICE [lens D28mm + lens D40mm] = 30 euro.

As a divagation, here is a Ronchi test (made two years ago, using the same screen) for a meniscus lens, F=1320mm. At that moment, the commercial lens was stopped at 32mm.
http://img585.images...32mmf1320mm.jpg
Just below are some more recent comparative pictures, entrance pupil: 28mm for both lenses (which were mounted on the same refractor).
Meniscus (commercial): http://img809.images...ne003redjpg.jpg
Biconvex (my lens): http://img171.images...100l2455pxr.jpg
The images speak for themselves!

B. Soda-lime glass, float "plate glass"
The glass of these lenses is ordinary plate glass, but the initial tests (by checking the plate in front of a concave mirror) had shown me a good optical homogeneity of the material.
Type 1'. Specifications:
- focal length (nominal) in G-channel: F = 5400mm (+100/+20mm);
- total diameter: Dt = ~69.5mm;
- center thickness: tc = ~7.5mm;
- high precision optical diameter: Duseful = 60mm;
- relative opening ("focal ratio"): N = F/Du = 90;
- the chromatic aberration coefficient: x = N/Du = 1.5
General: http://img687.images...mf5400mmjpg.jpg
The 18 feet long refractor (in provisional form): http://img717.images...letd60mmjpg.jpg
Moon, afocal set-up: http://img109.images...etad60mmjpg.jpg

PRICE for one lens = 23 euro.
Four lenses are available.

Type 2' (practical, these lenses gives the same image quality as the BK7 version).
Specifications:
- focal length (nominal) in G-channel: F = 2400mm (+10/-5mm);
- total diameter: Dt = ~49.3mm;
- center thickness: tc = ~7mm;
- high precision optical diameter: Duseful = 40mm;
- relative opening ("focal ratio"): N = F/Du = 60;
- the chromatic aberration coefficient: x = N/Du = 1.5
General: http://img13.imagesh...1/img5348cr.jpg
Ronchi tests using a distant terrestrial light source, wire thickness=0.11mm, inside-focus:
http://img689.images...ed40f2400mm.jpg
(This is just the final validation test, for the viewers. I also did another indoor optical test, during polishing, to establish the necessary strokes adjustments for both D40 and D60mm lenses.)
A few images which illustrates the manufacturing stages:
http://img267.images...scurilorjpg.jpg
http://img196.images...slefuirejpg.jpg
http://img585.images...4/sdvurijpg.jpg
http://img534.images...lafinalulsl.jpg
http://img534.images...olisareajpg.jpg
http://img407.images...img4645mod3.jpg

PRICE for one lens = 18.5 euro.
Six lenses are available.

Special offers:
PRICE [lens D40mm + lens D60mm] = 35 euro.
PRICE for two lenses D40mm = 32 euro.


Note: to all effective prices, I will add the shipping cost and the PayPal fee.
For more information, please contact me at e-mail: tavi.florian@gmail.com
  • astroneil likes this

#2 Ira

Ira

    Mercury-Atlas

  • *****
  • Posts: 2,992
  • Joined: 22 Aug 2010
  • Loc: Mitzpe Ramon, Israel

Posted 18 October 2012 - 05:07 PM

Stupid question. Are there any plans that might show how to build a 17th century-style telescope from these lenses? I'd love to try.

/Ira

#3 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 19 October 2012 - 03:07 AM

Here, on CN, is at least another subject on making the 17th century style refractors:
http://www.cloudynig...5/o/all/fpart/1
(I have posted some thoughts there)

At the following link, you can see a good article about medium sized non-achromatic refractors:
http://www.jdso.org/...r4/binder47.pdf

A brief history of refracting telescope (including images):
http://www.aip.org/h...-telescopes.htm
- Hevelius, 60 feet telescope - http://cnx.org/conte...escope_60ft.gif
- Huygens's tubeless telescope - http://cnx.org/conte...l_telescope.gif

Beyond the optical components, for a (precise) mechanical replica the main materials should be wood, ropes and paper (cardboard).
- In case of relative short focal lengths (up to 2 or 2.5 meters), we may consider the Galileo's solid primary tube + the focusing eyepiece tube.
http://galileotelescope.org/
- For longer focus objectives, we may chose:
1. the telescopic solution (2..4 segments);
http://cnx.org/conte...s_telescope.gif
2. long and solid wooden tube, like Alan Binder's replica;
3. or simply tubeless design, Huygens style.
The simplest ocular is a Kepler eyepiece (a single plan-convex lens), but the better one is a Ramsden or Huygens evolution.

Hopefully, these links are useful to get some ideas.

L.E.: Pics with my D28mm and D40mm refractors:
- D28mm: http://img209.images...td28mmf1250.jpg
- D40mm (in action): http://img542.images...td40mminobs.jpg
and the lens cell http://img838.images...lasimpletd4.jpg

#4 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 24 October 2012 - 01:25 PM

A region of the Moon, 23rd oct. Picture taken through the D40mm (plate glass) refractor + Plossl f25mm eyepiece + Canon A530 (movie mode) with its objective set at 23.2mm f.l.
800 frames stacked and processed, single point alignment:

Posted Image

#5 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 07 December 2012 - 08:17 AM

New offers available only this month, until the end of the year:

BK7 lenses:
- PRICE [lens D28mm + lens D40mm] = 26 euro.

Plate glass lenses:
- PRICE [lens D40mm + lens D60mm] = 30 euro.
- PRICE two lenses D40mm = 28 euro.

Note: to all effective prices, I will add the shipping cost and the PayPal fee.

Happy holidays!

P.S.: A brighter version of the previous photo (+ other details):
http://img805.images...0mm800cmod3.jpg

#6 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 12 June 2013 - 11:25 AM

Update: All the D40mm/BK7 lenses were sold out (three of them in my home country; two worldwide- Italy and USA). But I still have some D40mm/plate glass lenses and also the largest singlet objective made by me, D60mm.

Here is the new price list:

Unit price:
1. - lens D40mm, F2400mm = 16.5 euro;
2. - lens D60mm, F5400mm = 21 euro.

Prices for sets of two lenses:
1. - [lens D40mm+lens D60mm] = 28 euro;
2. - [two lenses D40mm] = 26 euro.
3. - I can add a 3rd lens (the D28mm/BK7 lens) for a 5 extra euros, at each set. Two D28mm lenses are still available.

Note: to all effective prices, I will add the shipping cost and the PayPal fee.
*********

And now I want to study the myth of allowable "loose tolerances in long focus singlet lenses". Bi-convex shape vs. meniscus. I started from a particular glasses lens which I own. This lens has R2=106mm and a focal length F=~1300mm, and so it resulted the remaining data. I don't know any other largely available source of meniscus convergent lenses, but the glasses.
Useful (imposed) aperture, D=30mm.

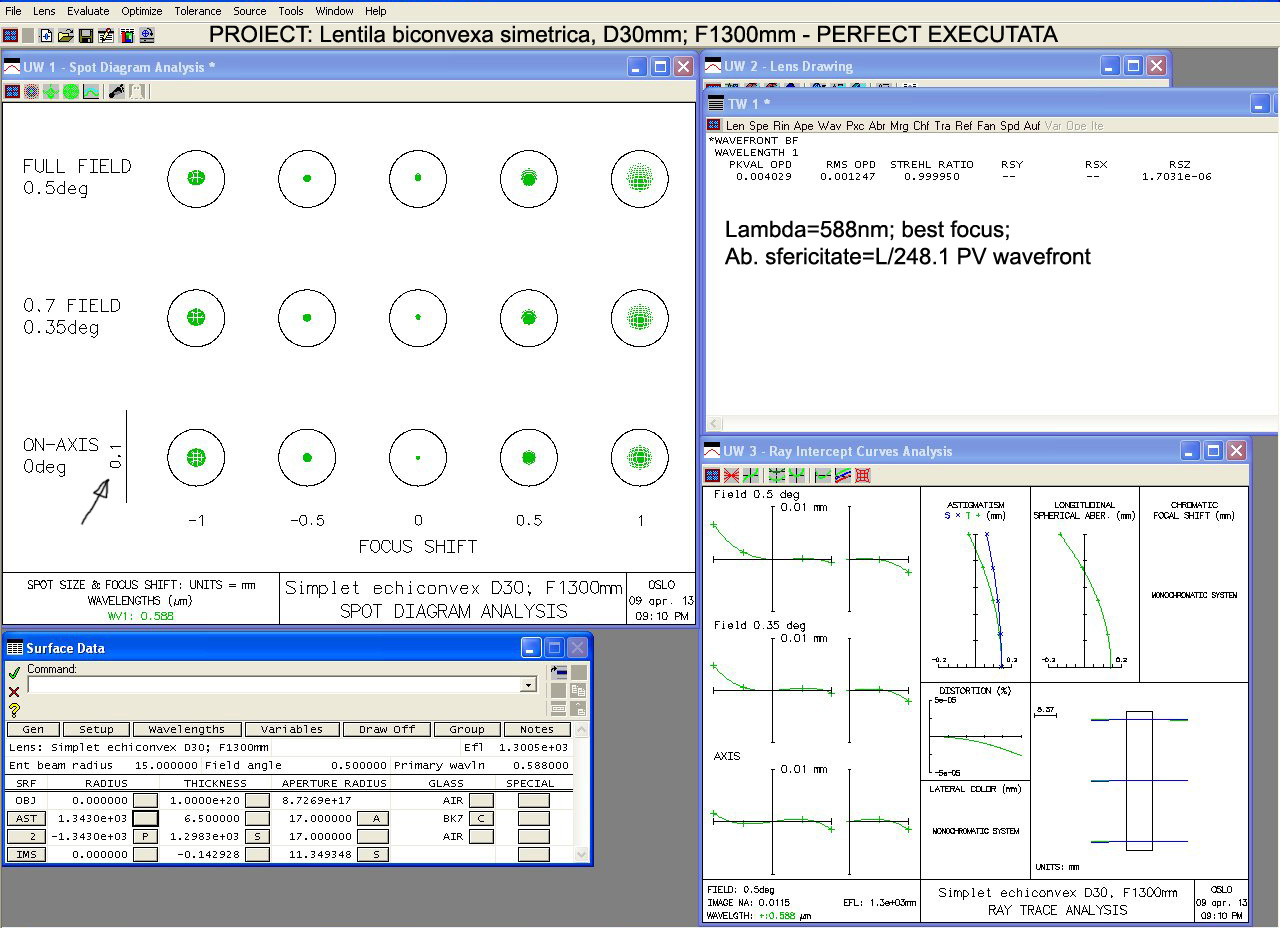

See the OSLO print-screens:
A. Biconvex lens: http://www.astronomy...mm_f1300mm_5...
Residual spherical aberration is lambda/248 PV wavefront at best focus.

B. Meniscus lens:
http://www.astronomy...f1300mm_588n...
Residual spherical aberration of the glasses meniscus is lambda/2.2 PV wavefront at best focus!! So, even a perfect executed meniscus will "perform" below the Rayleigh (L/4) criterion!

Back to real life:
More pictures taken in afocal set-up, unprocessed:
A. Biconvex lens, D28mm; F1250mm:
http://img850.images...rtfbiconvex.jpg
B. Meniscus lens, D28mm; F1310mm:
http://img703.images...rtfmeniscjp.jpg

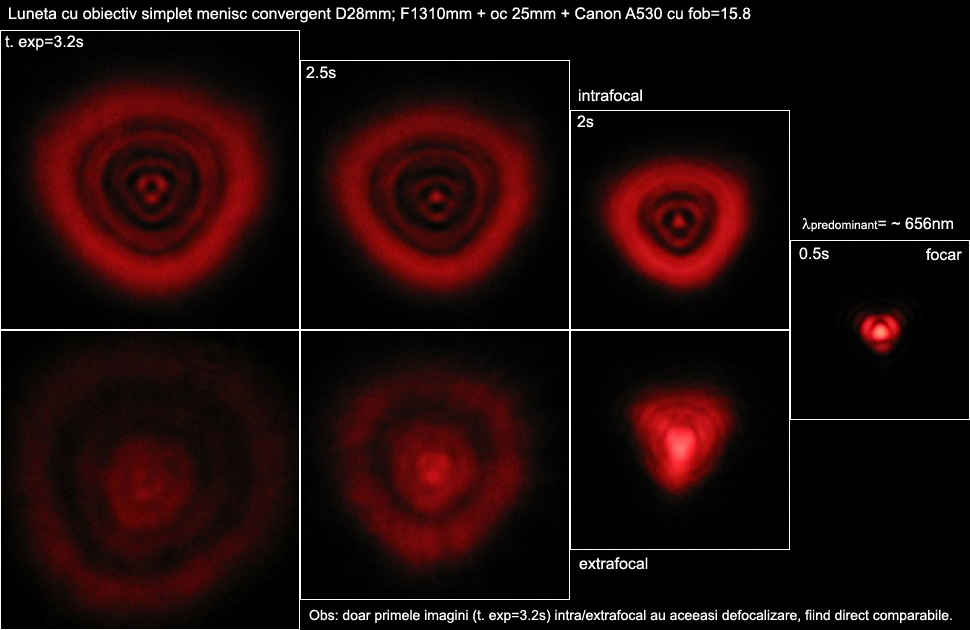

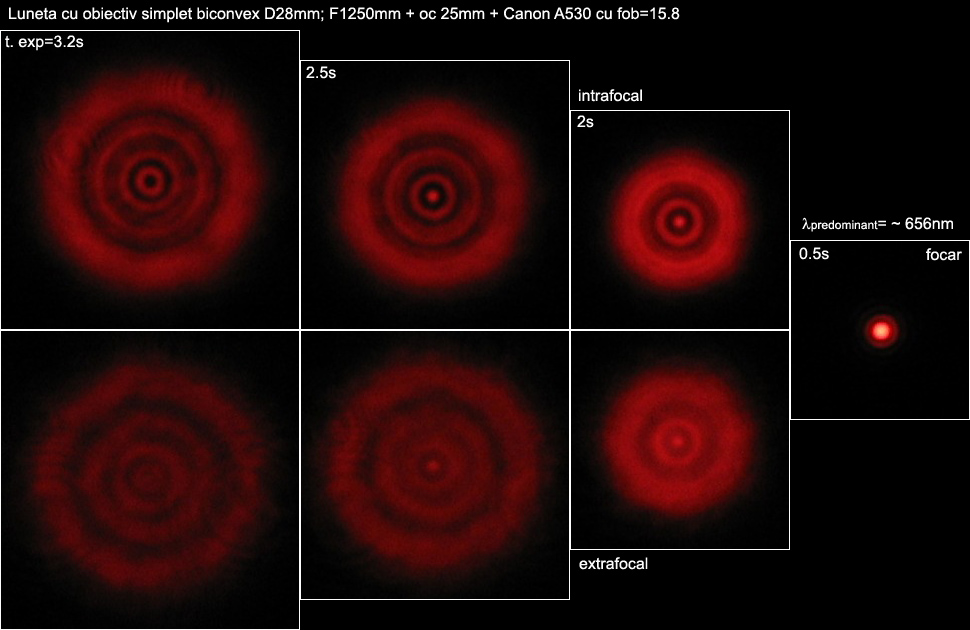

Artificial stat tests:
A. http://www.astronomy...ala_jpg_182.jpg
B. http://www.astronomy...ea_artificia...

~Monochromatic light:
A. http://www.astronomy...a_r_jpg_113.jpg
B. http://www.astronomy...a_r_jpg_856.jpg

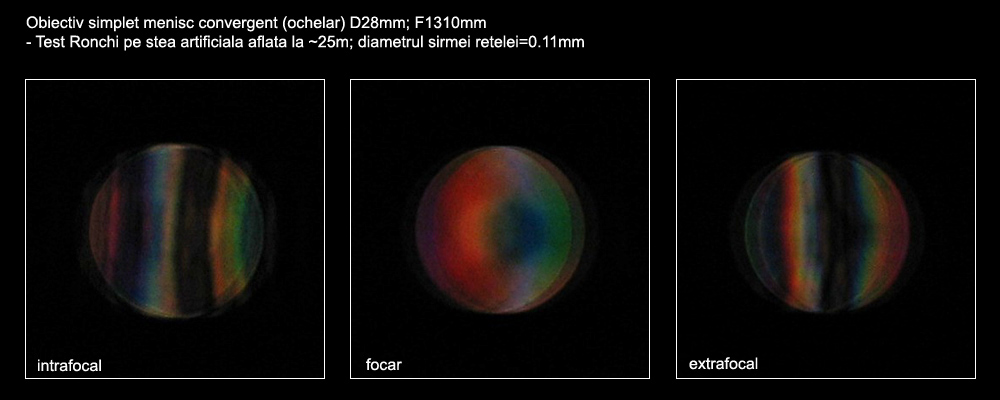

A vs. B' - Ronchi test, double pass through the tested lens, autocollimation on a flat mirror:
http://www.astronomy...od2_jpg_136.jpg

B'- the same meniscus before cutting, stopped at D32mm.

#7 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 05 August 2013 - 10:41 AM

Up!

#8 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 15 September 2013 - 11:08 AM

Up.

#9 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 16 November 2013 - 09:43 AM

Up.

New offer: three lenses D40mm = 33 euro.

#10 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 01 December 2013 - 05:33 PM

New prices for the remaining lenses:

Unit price:
1. - lens D40mm, F2400mm = 11.5 euro;
2. - lens D60mm, F5400mm = 13.5 euro.

Prices for sets of two lenses:
1. - [lens D40mm+lens D60mm] = 23 euro;
2. - [two lenses D40mm] = 21 euro.

#11 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 02 March 2014 - 11:54 AM

Up.

At the following link is a older capture of the Sun (from 10th of July 2012), taken afocally through the 40mm aperture singlet lens objective:

http://www.flickr.co...in/photostream/

Just 9 frames of each type stacked multipoint in AutoStakkert. These photos being the results of a recent reprocessing using that software.

#12 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 23 July 2014 - 02:01 AM

Still valid.

#13 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 15 October 2014 - 02:13 AM

Up.

In order to cut drastically the shipping cost, I can send the lenses in a registered letter.



The update from 1st of December 2013 is the lowest selling list price. Even myself think these are cheap, but it's not possible to offer them for nothing (not now or in the near future).
The lenses are not consumable, they last more than a human lifetime!!



More information only in PM.
Thanks.



LE: Sorry for the lost images hosted on Imageshack. They mix up the links, and seems to be a unreliable site. Some other time, I should post again a few images.


Edited by Tavi F., 15 October 2014 - 11:06 AM.


#14 meade4ever

meade4ever

    Viking 1

  • *****
  • Posts: 678
  • Joined: 23 Aug 2007

Posted 16 October 2014 - 07:56 AM

Do you still offer BK7 lenses ?



Can you grind custom lenses w/ much bigger diameter ?



#15 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 16 October 2014 - 09:31 AM

No, the BK7 lenses were sold out. In my country, it is quite hard to find optical glass (BK7). Probably for the larger and more important projects (achromatic doublets), I will search world wide for much needed glass.

Practically, the modern float glass (soda-lime) is a very proper substrate for singlet lens objectives. No detectable defects, just a tiny light loss through a given aperture.



And for this moment, I do not make custom lenses. Maybe in a distant future. These three types (D28, 40 and 60mm) were designed to fit my personal needs, first of all... and then extended to small production.


Edited by Tavi F., 16 October 2014 - 09:33 AM.


#16 Simon Alderman

Simon Alderman

    Ranger 4

  • *****
  • Posts: 353
  • Joined: 22 Aug 2012

Posted 22 October 2014 - 05:59 PM

Pm'ing you for the 60mm...



#17 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 01 November 2014 - 01:36 PM

Update: Two lenses were sold, one of each type. Thanks.



In the image below you can see all the lenses still available:






The two on the right are BK7 material, now put for sale. One is D38mm, F2030mm. The other is D28mm, F1250mm.



And here are the Ronchi tests on a distant terrestrial light source, wire thickness=0.11mm, inside-focus. D40mm lenses (soda-lime):






Complete list price:
Unit price:
1. - lens D40mm, F2400mm = 11.5 euro;
2. - lens D60mm, F5400mm = 13.5 euro;
3. - lens BK7 D38mm, F2030mm = 15 euro. (depends on the sets requisition)



Prices for sets of two or more lenses:
1. - [lens D40mm+lens D60mm] = 23 euro;
2. - [two lenses D40mm] = 21 euro;
3. - BK7: [lens D28mm+lens D38mm] = 21 euro;
or
3'. complete set - [lens BK7 D28mm+lens D40mm+lens D60mm] = 29 euro.



It is more convenient to buy at least two lenses in the same shipping cost.
About the shipping method, I may send lenses packed in registered letters only in EU countries and just one lens per letter. Of course, it's easier for me to send it that way, in a letter, anywhere in the world, but I am a bit reserved. More information (about total charge) in pm, on concrete cases.



LE: Some images taken during the lens making process:
D38mm:
http://oi57.tinypic.com/dcwimg.jpg
http://oi58.tinypic.com/2edbm0l.jpg

D40mm:
http://oi59.tinypic.com/vhf91h.jpg
http://oi57.tinypic.com/2nsn4k.jpg
http://oi57.tinypic.com/1z18d3a.jpg
http://oi57.tinypic.com/33y6ctt.jpg
http://oi62.tinypic.com/r253qo.jpg
http://oi61.tinypic.com/331hxcy.jpg


Edited by Tavi F., 01 November 2014 - 02:08 PM.


#18 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 19 November 2014 - 09:07 AM

Update: Three lenses were sold, pt. 3' (the complete set). Thanks.



#19 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 01 December 2014 - 02:43 PM

Two more images of my D60mm lens cell with the lens in it. It's a very simple, effective and durable design. Just an idea:



https://scontent-a-a...512236192_o.jpg

https://scontent-b-a...964417236_o.jpg



#20 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 22 January 2015 - 05:26 PM

Update:



Five lenses were sent today to UK. Thanks!
Just one lens D40mm (soda-lime) is still available. Or, I can supply another one from those retained for personal use. So, two lenses in the same shipping cost being more convenient, with a slight discount also.



- Price for one lens D40mm (F2400mm) = 12 euro;
- Price for two lenses D40mm = 22 euro.


Edited by Tavi F., 22 January 2015 - 05:28 PM.


#21 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 23 March 2015 - 11:54 PM

Up.



#22 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 29 August 2015 - 12:38 AM

Up.



At the link below is a recent image of the Moon, taken through the 40mm aperture refractor (equipped with the remaining type of objective). 15 images stacked an processed, then extracted the G channel.



https://farm6.static...2ea2aefea_o.jpg


  • andycknight and Sasa like this

#23 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 04 September 2015 - 07:47 AM

The remaining lenses were sold in my home country. Out of stock.



Thanks.



#24 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 19 July 2016 - 08:34 AM

Hello again,



Update: I still have available one lens D40mm, F2400mm, soda-lime glass. Initially, I kept that lens for personal use, but it is sitting not used in the window. I have already more then enough singlet objective lenses for me.



The last price specified in this topic was way too small for this type of hand made optics, which lasts more than a lifetime.
So, the effective price for one lens D40mm, F2400mm = 16 euro.
And the cheapest shipping cost is 6 euro, in slim packing, plus 4 euro PayPal fees.
The total price for the potential buyer is 26 euro, anywhere in the world.



In my opinion, this reproductions of historic non-achromatic refractors are very interesting and enjoyable. Visually and photographic, although - "by definition" - the singlet is not suitable for photography. Even in this conditions, at the links below you can see some astro-images obtained with my D40mm historical refractor and a DSLR camera. The photos are recent, from this year:



1. The planets:
- Jupiter:
https://c2.staticfli...fef8afd4d_o.jpg
- Saturn:
https://c2.staticfli...4714eb562_o.jpg
- Mars:
https://c2.staticfli...b165ab8ce_o.jpg



2. The Sun:
- https://c2.staticfli...a436b033d_o.jpg
- Mercury transit:
https://c2.staticfli...dd7a8af8e_o.jpg



3. The Moon:
- https://c2.staticfli...7010c758d_o.jpg
- https://c2.staticfli...fb451bcb0_o.jpg



Thanks.


  • andycknight likes this

#25 Tavi F.

Tavi F.

    Vendor (refractor optics)

  • *****
  • Vendors
  • topic starter
  • Posts: 293
  • Joined: 27 Jun 2008
  • Loc: Europe

Posted 26 July 2016 - 05:23 PM

Another recent image of Saturn, taken through the 40mm aperture singlet:





  • Astrojensen and andycknight like this


CNers have asked about a donation box for Cloudy Nights over the years, so here you go. Donation is not required by any means, so please enjoy your stay.


Recent Topics






Cloudy Nights LLC
Cloudy Nights Sponsor: Astronomics
