Post your home made scope

  • Please log in to reply
1596 replies to this topic

#26 barieb

barieb

    Sputnik

  • *****
  • Posts: 43
  • Joined: 30 Oct 2004

Posted 22 January 2013 - 05:19 PM

Starhopper put away

Attached Thumbnails

  • 5637381-photo2.JPG

  • Deven Matlick, Cometeer, AstroKerr and 3 others like this

#27 mikey cee

mikey cee

    Cosmos

  • *****
  • Posts: 9,589
  • Joined: 18 Jan 2007
  • Loc: springfield ne.

Posted 22 January 2013 - 05:23 PM

My home brew of over 30 years in the making and evolving. Now currently an Istar 10" F/11 R30. The Jaegers 6" F/8 has a dual function of serving as a 38x finderscope and a widefield DSO locater. My philosophy is if I can't "detect" it in the 6" scope it's not going to show in the 10" because of the much higher magnifications and narrower field of view. But remember I'm in the urban city so my skies are shall we say.....rather milky? But double stars and planets.....whoooo weeee!:grin: Mike

Attached Thumbnails

  • 5637388-New Finder April 30 2012 011 (Medium).jpg

  • Deven Matlick, mattyfatz, Chassetter and 10 others like this

#28 jasonharris

jasonharris

    Ranger 4

  • -----
  • Posts: 306
  • Joined: 16 Sep 2006

Posted 22 January 2013 - 05:52 PM

I think the old forums may have had a thread like this..

Here are the two scopes I have built, a 16" dob which I only have one photo handy. Guy grunting behind it is not me :)

The other is the 12.5" rc I did a little while back.

Attached Thumbnails

  • 5637449-16dobsmall.jpg

  • Venetia2004, Deven Matlick, Rob McKenna and 2 others like this

#29 jasonharris

jasonharris

    Ranger 4

  • -----
  • Posts: 306
  • Joined: 16 Sep 2006

Posted 22 January 2013 - 05:53 PM

And the RC.

Attached Thumbnails

  • 5637450-rc.jpg

  • Venetia2004, Deven Matlick, ctcables and 2 others like this

#30 Gary Fuchs

Gary Fuchs

    Surveyor 1

  • *****
  • Posts: 1,558
  • Joined: 22 May 2006
  • Loc: Easton, PA, USA

Posted 22 January 2013 - 06:23 PM

My 4.25" Delmarva Schief...

Posted Image

Gary

#31 cpr1

cpr1

    Viking 1

  • *****
  • Posts: 926
  • Joined: 24 Mar 2012
  • Loc: Louisiana

Posted 22 January 2013 - 06:49 PM

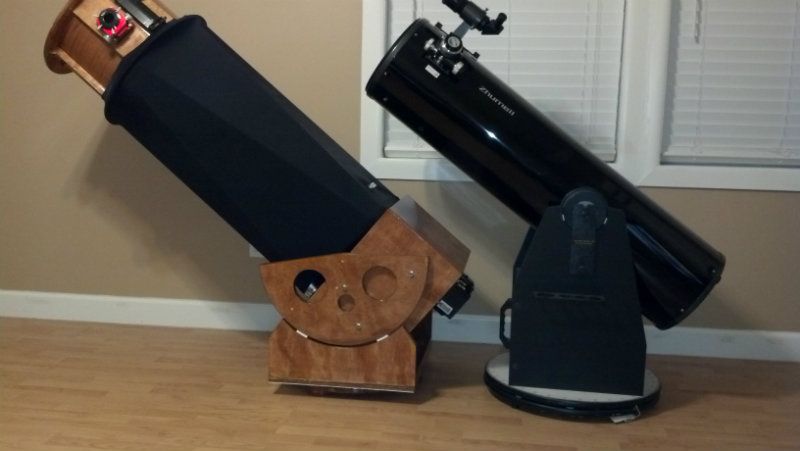

Remake of my Z12 next to my Z10.

Posted Image

#32 Pinbout

Pinbout

    ISS

  • *****
  • Posts: 24,885
  • Joined: 22 Feb 2010

Posted 22 January 2013 - 07:01 PM

my rehab'ed truss. [dragons represent the heavens so I thought its not incongruent]

Attached Thumbnails

  • 5637558-closeup.jpg

  • Venetia2004, Deven Matlick, KennFromTX and 2 others like this

#33 StarWrangler

StarWrangler

    Viking 1

  • -----
  • Posts: 978
  • Joined: 03 Sep 2004
  • Loc: Three Rivers, MI U.S.A>

Posted 22 January 2013 - 07:11 PM

My Little scope was made by the late
John Poaska of the kalamazoo Astronomical Ssociety

It is a 52 WWII bino lens.

Alan O.

Attached Thumbnails

  • 5637569-jpaskascope.JPG

  • Venetia2004, Deven Matlick, mattyfatz and 1 other like this

#34 StarWrangler

StarWrangler

    Viking 1

  • -----
  • Posts: 978
  • Joined: 03 Sep 2004
  • Loc: Three Rivers, MI U.S.A>

Posted 22 January 2013 - 07:13 PM

Another view
of the John Paska scope

Alan O.

Attached Thumbnails

  • 5637571-jpaskascopeII.JPG

  • Venetia2004, Deven Matlick, mattyfatz and 1 other like this

#35 StarDusty

StarDusty

    Ranger 4

  • -----
  • Posts: 341
  • Joined: 02 Oct 2007
  • Loc: Parsippany, NJ

Posted 22 January 2013 - 10:39 PM

You can see the rest:

16" Dob
13" Dob
6" f/5.6
6" f/12

On my website listed below

Attached Thumbnails

  • 5637914-23 Finish Left.jpg

  • BarabinoSr, Deven Matlick, Rob McKenna and 6 others like this

#36 mconnelley

mconnelley

    Viking 1

  • *****
  • Posts: 747
  • Joined: 14 Mar 2006
  • Loc: Hilo, HI

Posted 23 January 2013 - 02:00 AM

Hello:

For my 20" f/4 ballscope, the collimation is indeed done from the front. The silvery bits you can see around the mirror are the face clips that keep the mirror from falling out. I can use the screws that attach the top ring to the truss poles to effectively lengthen or shorten the truss poles. Depending on your point of view, this either A) tilts the ball relative to the truss or B) tilts the truss relative to the ball. Either way, I can get it so that the optical axis of the primary mirror goes through the middle of the focuser. Since the truss is a hexapod, I could also use the truss screws to tilt the secondary. However, for the sake of simplicity, I use the usual collimation screws on the back of the secondary to tilt it so that the truss screws are just for primary mirror collimation.

Cheers
Mike

#37 dave brock

dave brock

    Vanguard

  • -----
  • Posts: 2,225
  • Joined: 06 Jun 2008
  • Loc: Hamilton, New Zealand

Posted 23 January 2013 - 02:20 AM

Here are the two scopes I have built, a 16" dob which I only have one photo handy. Guy grunting behind it is not me :) The other is the 12.5" rc I did a little while back.


As I know Jason I thought I would point out that the guy in the rc pic is not him either :tonofbricks:

Dave

#38 dave brock

dave brock

    Vanguard

  • -----
  • Posts: 2,225
  • Joined: 06 Jun 2008
  • Loc: Hamilton, New Zealand

Posted 23 January 2013 - 02:25 AM

One of my early efforts, an 8" Dob with optional folding stand.

Dave

Attached Thumbnails

  • 5638196-8inch 2.JPG

  • Deven Matlick, Chassetter, Rob McKenna and 1 other like this

#39 neo

neo

    Gemini

  • *****
  • Posts: 3,046
  • Joined: 12 Feb 2008
  • Loc: Iasi, Romania

Posted 23 January 2013 - 06:48 AM

My little Uberfractor :grin: I made a while ago out of a Rodenstock lens. Very nice flat field RFT which should be very good for wide field imaging. The quick and dirty Alt-Az mount seats on an old eq3 tripod tuned also for better stability.

Attached Thumbnails

  • 5638303-Picture 128.jpg

  • Deven Matlick, mattyfatz, Earthbound1 and 1 other like this

#40 droid

droid

    rocketman

  • *****
  • topic starter
  • Posts: 8,803
  • Joined: 29 Aug 2004
  • Loc: Conneaut, Ohio

Posted 23 January 2013 - 06:52 AM

Mine is home made, though not by myslef, but rather by a Ohio ATM named Jason Hissong
http://www.cloudynig...&Board=atm&N...

Attached Thumbnails

  • 5638307-Elekts CN.jpg

  • Deven Matlick and Astrokhan like this

#41 Jim Curry

Jim Curry

    Mercury-Atlas

  • *****
  • Posts: 2,684
  • Joined: 29 Oct 2007
  • Loc: STL

Posted 23 January 2013 - 06:54 AM

4" f/12 Istar, powder coated, baffled, AP focuser.
Jim

Attached Thumbnails

  • 5638309-IMG_2484a.jpg

  • Deven Matlick, Chassetter, gitane71 and 3 others like this

#42 NHRob

NHRob

    Cosmos

  • *****
  • Posts: 8,107
  • Joined: 27 Aug 2004
  • Loc: Southern Cloud-Hampshire

Posted 23 January 2013 - 07:18 AM

Nice. How are the optics on that 4" Istar?

#43 John Jarosz

John Jarosz

    Astro Gearhead

  • *****
  • Posts: 3,539
  • Joined: 25 Apr 2004
  • Loc: Fairfax, Iowa

Posted 23 January 2013 - 08:31 AM

Here are the 3 scopes in my sig line

Attached Thumbnails

  • 5638401-3 scopes.jpg

  • Deven Matlick, mattyfatz, Chassetter and 9 others like this

#44 tim53

tim53

    Hubble

  • *****
  • Posts: 15,187
  • Joined: 17 Dec 2004
  • Loc: Highland Park, CA

Posted 23 January 2013 - 11:05 AM

This was my first home-made scope. No jive!

8" f/6 Springfield Newtonian, 1981 RTMC Merit award winner.

Posted Image

-Tim
  • Deven Matlick, mattyfatz, Svezda and 4 others like this

#45 droid

droid

    rocketman

  • *****
  • topic starter
  • Posts: 8,803
  • Joined: 29 Aug 2004
  • Loc: Conneaut, Ohio

Posted 23 January 2013 - 11:20 AM

Some beautiful scopes so far. :bow: :bow: :bow: to all

#46 Victor Martinez

Victor Martinez

    Viking 1

  • -----
  • Posts: 609
  • Joined: 05 Feb 2007
  • Loc: Cadiz - Spain

Posted 23 January 2013 - 11:31 AM

Here the mine, 16" f5

Posted Image

#47 idp

idp

    Viking 1

  • -----
  • Posts: 506
  • Joined: 21 Aug 2009
  • Loc: New Haven, CT

Posted 23 January 2013 - 11:33 AM

Awesome thread, I learned a lot just by scrolling down.

Mike, I fell in love with your ball mount but frankly, how hard is it to collimate with the trusses instead of the primary mirror?


Ivano

#48 droid

droid

    rocketman

  • *****
  • topic starter
  • Posts: 8,803
  • Joined: 29 Aug 2004
  • Loc: Conneaut, Ohio

Posted 23 January 2013 - 12:28 PM

Victor , like the 16" f/5 on the focuser board, burned in???
  • BillHarris likes this

#49 Victor Martinez

Victor Martinez

    Viking 1

  • -----
  • Posts: 609
  • Joined: 05 Feb 2007
  • Loc: Cadiz - Spain

Posted 23 January 2013 - 01:09 PM

Andy, is a black vinyl adhesive

#50 StarWrangler

StarWrangler

    Viking 1

  • -----
  • Posts: 978
  • Joined: 03 Sep 2004
  • Loc: Three Rivers, MI U.S.A>

Posted 23 January 2013 - 01:25 PM

Cool,

The one open Scope reminds me of D. Dillworths Dall Kirkham Folding scope that was in Sky & Telescope some years ago.

Alan O.
