Celestron C90 Registry

  • Please log in to reply
15 replies to this topic

#1 Masvingo

Masvingo

    Apollo

  • *****
  • topic starter
  • Posts: 1251
  • Joined: 10 Jan 2012
  • Loc: Ayrshire, Scotland

Posted 23 May 2018 - 05:14 PM

Having recently acquired a C90 Astro to complement my Spotter I've spent some time working through the posts in the ‘Orange C90’ thread to produce a C90 Registry for the USA made C90s.



Based on the serials, there was no distinction between Telephoto, Spotter and Astro versions in numbering, although Telephoto versions were styled ‘Mirror Lens’ on the gold band around the rear of the OTA on which the serial number is printed and the Spotter and Astro versions were styled ‘Maksutov Telescope’.  From what I have read, other than this, the OTAs are the same between all three versions.



The optics have different numbers and, unlike the Schmidt Cassegrain scopes, the optics number on the corrector can be read without removing the corrector, although as it is written on the edge, when you look at it from the front through the corrector you see a reversed image and need to allow for this, as can be seen in the post below.



By the time the C90 was introduced, in 1978, Celestron already seemed to be thinking of moving away from the old style serial numbers used for the C5s and C8s which showed the quarter and year of production.  Instead, the C90 serials started with a 9.  Initially 4 digit serials with the pattern 9nnn were used with nnn being a sequential number (the earliest number is serial 9136, a Spotter reported by Dmala) and when they reached 9999 an extra digit was added giving a 9nnnn pattern.  However it would seem that the sequence did not restart at 1, to give 90001, but continued from 1000, ie going from 9999 to 91000, as we have the Spotter reported by Apophis Dude with serial 9896 and the next one is a Telephoto with serial 91687 reported by Charles425. But it could be that there are C90s with 90nnn serials out there.



However, when 9999 was reached, although they moved to a six digit format of 9nnnnn, this time the sequence does appears to have been restarted from 1 as we go from the Spotter reported by LostInStool with serial 99429 to serial 900212 reported by Geo.



Some time between the Spotter reported by Antonio Spinoza with serial 915626, and the Astro reported by Cometeer with serial 921082, the C90 seems to have changed from an orange tube to a black one.



To confuse matters further, there are also black C90s with 8nnnnn serials as reported by Joe Cepleur (#887061) and SkyCruzr (#896298).  Does anyone know how and when the 8 series numbers fit in?



Finally, the f5.6 Telephoto, also styled a ‘mirror lens’ on the gold band, had serial numbers starting with a 5.  Only one has been reported (by Geo) with serial 501649 so it’s not clear yet whether the f5.6 version followed the f11 version with initially having 4 and 5 serials as well.



As always, any further contributions, clarifications additions and corrections gratefully received.  If known, it would be good to have the corrector number and the original purchase date if known and, for astro versions, any date on the motor.   Also, if there is a case, is it a leatherette covered wood case or a plastic case and for Spotters and Astros, what manufacturer’s symbol is on the finder scope?

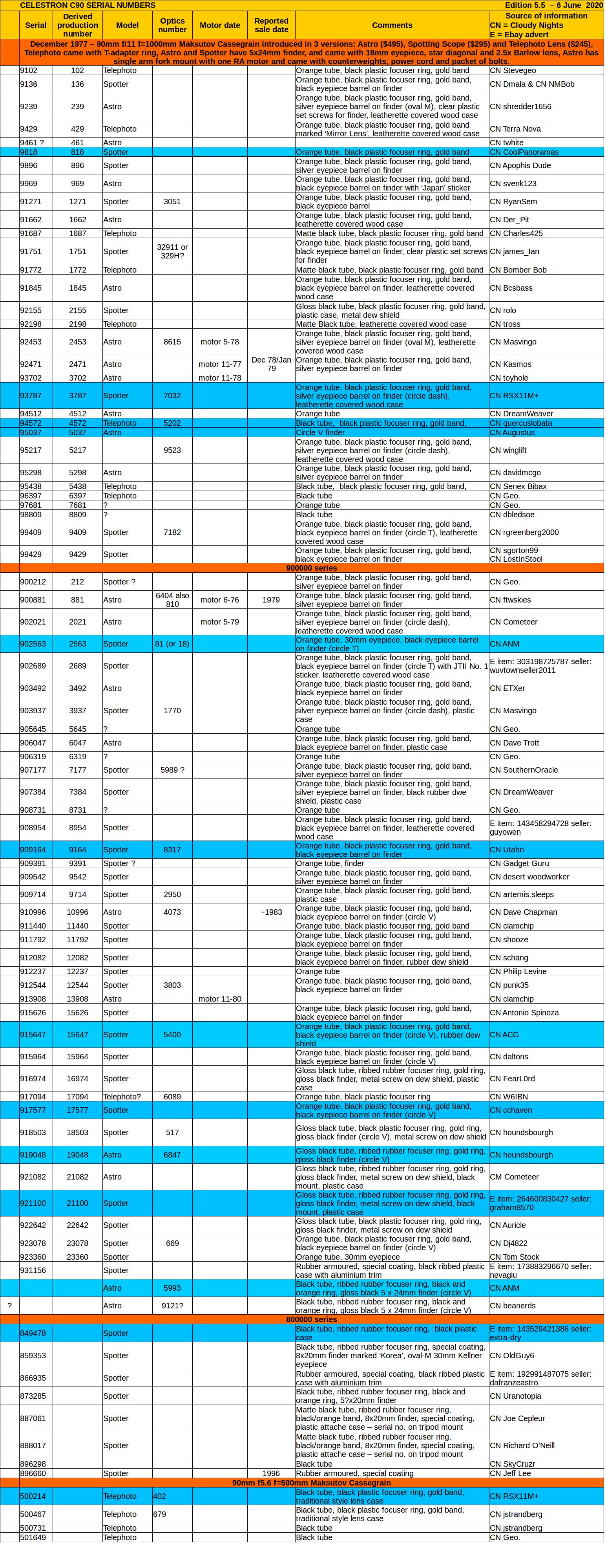

A low resolution image of the Registry is shown below and a higher resolution image can be seen by clicking on C90 Registry.





  • DreamWeaver, Cometeer, Richard O'Neill and 1 other like this

#2 Masvingo

Masvingo

    Apollo

  • *****
  • topic starter
  • Posts: 1251
  • Joined: 10 Jan 2012
  • Loc: Ayrshire, Scotland

Posted 23 May 2018 - 05:20 PM

The serial number of my spotter 903937....



C90 Spotter.JPG



The optics number can be seen on the edge of the corrector at the bottom ...



C90 Spotter #2.JPG



An enlarged image of the optics number - as seen through the corrector the image is reversed



C90 Spotter #3.JPG



But can be easily read if reversed in photo editing software as 1770



C90 Spotter #3 Rev.JPG


Edited by Masvingo, 23 May 2018 - 05:22 PM.


#3 Masvingo

Masvingo

    Apollo

  • *****
  • topic starter
  • Posts: 1251
  • Joined: 10 Jan 2012
  • Loc: Ayrshire, Scotland

Posted 23 May 2018 - 05:25 PM

The finder on my Spotter marked circle dash for Carton?



C90 spotter finder.JPG Spotter Finder circle dash.JPG







#4 Masvingo

Masvingo

    Apollo

  • *****
  • topic starter
  • Posts: 1251
  • Joined: 10 Jan 2012
  • Loc: Ayrshire, Scotland

Posted 23 May 2018 - 05:28 PM

The finder on my Astro marked oval M for Mizar?



Astro finder.JPG Astro Finder oval M.JPG



#5 Chuck Hards

Chuck Hards

    You don't know Swift from Astrola

  • *****
  • Administrators
  • Posts: 21063
  • Joined: 03 May 2010

Posted 23 May 2018 - 06:55 PM

I've added this one to the Useful Classic Scopes Links sticky, with the other registries.  LINK


  • Masvingo likes this

#6 terraclarke

terraclarke

    Hubble

  • *****
  • Posts: 17322
  • Joined: 29 May 2012
  • Loc: Zinzinnati

Posted 24 May 2018 - 08:30 AM

*Mine (#9429) was sold last May to CN member LostInStool.


  • Masvingo likes this

#7 Cometeer

Cometeer

    Surveyor 1

  • *****
  • Posts: 1871
  • Joined: 07 Aug 2013
  • Loc: SF Bay Area, California or Illinois

Posted 24 May 2018 - 02:57 PM

Masvingo,



My C90 (902021) came with a leatherette wood case and has a circle dash on the finder as well.



RR


  • Masvingo likes this

#8 svenk123

svenk123

    Sputnik

  • -----
  • Posts: 45
  • Joined: 20 Dec 2016
  • Loc: Frankfurt, Germany

Posted 25 May 2018 - 04:49 AM

Hello,



my C90 astro has the serial number #9969. Orange tube, black plastic focuser ring, gold band, black eyepiece barrel on finder with "Japan" sticker.

Please put it on the list.



Clear skies

 Sven

Attached Thumbnails

  • celestron_c90_astro_serialnumber.jpg

  • Masvingo likes this

#9 Richard O'Neill

Richard O'Neill

    Surveyor 1

  • *****
  • Posts: 1530
  • Joined: 19 Aug 2014

Posted 25 May 2018 - 11:47 AM

My C90 serial number is 888017. Same comments apply as 887061.


  • Masvingo likes this

#10 Masvingo

Masvingo

    Apollo

  • *****
  • topic starter
  • Posts: 1251
  • Joined: 10 Jan 2012
  • Loc: Ayrshire, Scotland

Posted 26 May 2018 - 06:51 AM

Thanks for the new C90 serials, Sven and Richard, I've added them to the C90 Registry, which is now updated to Edition 1A.  As with the C5 and C8 Registries, new entries are shown in blue.  I've also added the additional information for your C90, Cometeer, thanks.

As people sometimes submit details of 'scopes belonging to friends or their club, and also because some 'scopes will get sold as the years go by, the Registry has been setup to show the source of the serial number and other information recorded rather than the owner, although in the majority of the cases the two will be the same.


Edited by Masvingo, 26 May 2018 - 06:54 AM.


#11 shooze

shooze

    Vostok 1

  • *****
  • Posts: 126
  • Joined: 09 Dec 2016
  • Loc: Ontario, Canada

Posted 28 May 2018 - 01:38 PM

My C90 spotter serial #911792. Orange tube, black plastic focus ring, black and orange finder scope, gold band.


  • Masvingo likes this

#12 Masvingo

Masvingo

    Apollo

  • *****
  • topic starter
  • Posts: 1251
  • Joined: 10 Jan 2012
  • Loc: Ayrshire, Scotland

Posted 03 June 2018 - 01:46 PM

Thanks for the details for your Spotter, shooze.  I've added it to the C90 Registry, which is now updated to Edition 1B.


  • shooze likes this

#13 OldGuy6

OldGuy6

    Lift Off

  • -----
  • Posts: 7
  • Joined: 06 Jul 2018
  • Loc: 'Tween Tahoe and TOPGUN

Posted 06 July 2018 - 08:01 PM

Recently picked this up at a hamfest:



C90 S/N 859353

Black

I can't find an optics number where it's supposed to be

Stickers: around barrel "Celestron C90 1000mm F/11" and on tripod adapter"Special Coating"

Finder silkscreens (white) "Celestron 8x20" and (black) "Korea"

Eyepiece is silkscreened "30mm Kellner .96" and stamped Japan with an "M" in a circle (looks like the Mazda logo)



With an eyepiece in place, the image is inverted, but it came with the "Erect Image Diagonal," a prism insert which inverts the image for use as a spotting scope.



Also came with two Orion eyepieces (9 and 12.5mm), Orion 2x Barlow extender, a Meade polarizing filter that screws into the various eyepieces, a T-adaptor (Celestron) with CA bayonet mount on the camera end, a solar filter (Celestron) that fits over the objective, and factory Kydex carrying case.



Still in the case were a copy of the Celestron Spotting Scope Instruction Manual, covering 5 different models including the C90, and the original sales invoices for scope and accessories, all from Orion Telescope Center in Santa Cruz, CA.



7-5-89:

Polarizing filter  $12.95

T-adapter  $36.00

9mm eyepiece  $39.95



8-3-89:

C90  $459.00 (he was buying accessories before the scope?)

Barlow lens  $34.95

Konica T-ring  $14.95 (to attach to the T-adapter -- this is not the one that I have)



6-29-91

Solar Filter for C-90  $79.95



6-7-02

Canon T-ring  $23.82 (this is the one that I have)



It does NOT look like the C90s I see currently for sale -- the rear half is a knurled rubber ring for focusing in front of a big casting which makes up the rear end and holds the tripod adapter, mount for finder and eyepiece.  Ahead of the right, the barrel is a simple cylinder.



The Solar Filter is just heavily mirrored Mylar with a rubber ring to hold it in place.  I'll bet his first thought was "I paid 80 bucks for THIS???"



Interestingly, I also got the Summer 2002 Orion catalog with this, and no Celestron items are offered, nor is there an Orion scope configured like the C90 I have.



Hope this info is of value to someone.



#14 ftwskies

ftwskies

    Viking 1

  • -----
  • Posts: 863
  • Joined: 29 Jan 2015
  • Loc: Under Fort Worth skies...

Posted 14 July 2018 - 10:01 AM

You got my sn and other info correct, but I didn’t know about the lens marking until I read about it in this thread! Checked mine this morning and it shows two marks. One appears to say (in reverse) “6404”. Then about 90° ccw from that one (facing into the objective end of the scope) it looks like it says 810. 🤷🏻‍♂️

#15 Der_Pit

Der_Pit

    Explorer 1

  • -----
  • Posts: 60
  • Joined: 07 Jul 2018
  • Loc: La Palma

Posted 23 July 2018 - 07:28 AM

Also having one of those :)

Was actually my first scope, got it at some point in the mid/late 80s IIRC, bought second hand.



S/N 91662, Optics 3517



It's the astro version in orange, plastic black focussing ring, gold band, with 5x24 finder.  Came in the 'nice' leatherette covered wood case.

It came with the one-armed motorized mount, a wedge, 24.5mm prism+barlow+eyepiece, plus two T2 extension tubes (21mm and 121mm) that connect to the SC(?) thread on the back.

The motor drive must be somewhere at my parents place (several 1000km away...), so I cannot check the date on there.


  • Cometeer and shredder1656 like this

#16 shredder1656

shredder1656

    Viking 1

  • *****
  • Posts: 978
  • Joined: 24 Sep 2017
  • Loc: Indiana

Posted 24 July 2018 - 05:59 PM

C90 Astro with SN of 9239.



Don't know if this is original, but the finder has white or semi-clear (formerly) plastic screws.  The scope needs some serious cleaning, is a little beat-up, and not sure about the innards, but it doesn't perform too poorly.



















Edited by shredder1656, 24 July 2018 - 06:06 PM.

  • Kasmos and Moffett like this
