Do I need a UV/cut filter in addition to duo-band filter?

  • Please log in to reply
8 replies to this topic

#1 dagree

dagree

    Lift Off

  • -----
  • topic starter
  • Posts: 6
  • Joined: 21 Apr 2020

Posted 20 July 2022 - 08:39 AM

Hi people



I know that this sounds like a dumb question, so please bear with me if it is.



I am shooting with a full spectrum (no UV/IR cut filter) modified Sony a6000 and a duo-band filter (STC Astro Duo-Narrowband Clip Filter) that should only let in light around 500nm (OIII) and 656 (Ha). However, I recently noticed in the documentation of the filter that it also lets in light below 350nm. As my camera is full spectrum, I am not sure if light in that range is being filtered and if it is a problem for my astrophotography if it is not being filtered - any experts who can help me answer that?



I guess I could always add a UV/IR cut filter on top to be on the safe side, but the less glass the better.



Thanks,

Niels





#2 bobzeq25

bobzeq25

    ISS

  • *****
  • Posts: 34,480
  • Joined: 27 Oct 2014

Posted 20 July 2022 - 10:07 AM

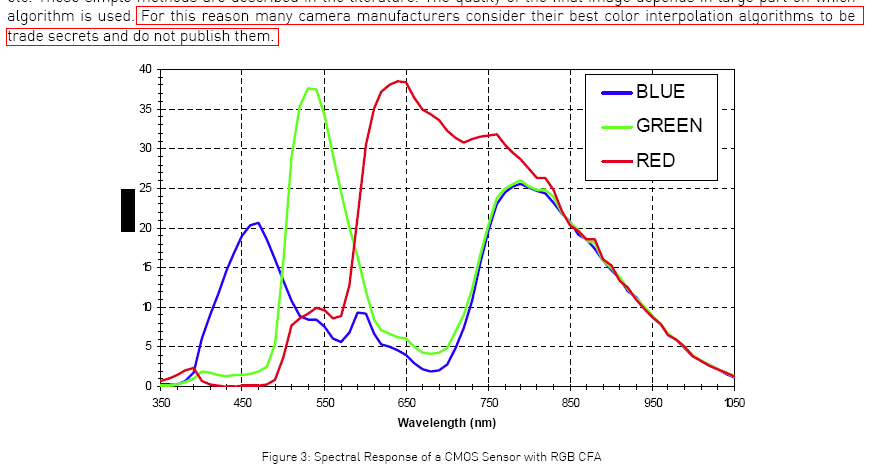

Your camera still has a Bayer matrix filter for color over the sensor.  That system has little response at wavelengths shorter than 350.



https://pic4.zhimg.c...b7cd5bce2_r.jpg


The filter will block the relevant IR.



https://nimax-img.de...d-Filter-2-.jpg



So, no.



Take home message.  Look at spectral response curves.  Google is a good source.


Edited by bobzeq25, 20 July 2022 - 10:08 AM.


#3 bobzeq25

bobzeq25

    ISS

  • *****
  • Posts: 34,480
  • Joined: 27 Oct 2014

Posted 20 July 2022 - 10:09 AM

Your camera still has a Bayer matrix filter for color over the sensor.  That system has little response at wavelengths shorter than 350.



https://pic4.zhimg.c...b7cd5bce2_r.jpg



The filter will block the relevant IR.



https://nimax-img.de...d-Filter-2-.jpg



So, no.



#4 dagree

dagree

    Lift Off

  • -----
  • topic starter
  • Posts: 6
  • Joined: 21 Apr 2020

Posted 20 July 2022 - 01:12 PM

Thanks, makes sense.


  • bobzeq25 likes this

#5 buytaert

buytaert

    Lift Off

  • -----
  • Posts: 4
  • Joined: 18 Feb 2019

Posted 25 February 2024 - 08:41 AM

Hello,



I am also considering to remove the stock glass form my A6000 to make it sensitive to Ha. Since you did not replace that glass with anything else, I wonder if you are stil able to get focus at infinity with a lens ? Or are you using your camera only with telescopes ?

Did you look for a UV/IR replacement ?

Many thanks for your answer, Jan



#6 Digitaliz.se

Digitaliz.se

    Explorer 1

  • -----
  • Posts: 77
  • Joined: 18 Aug 2021

Posted 25 February 2024 - 09:32 AM

I looked at the spectrum of that filter. I cant see it leta UV in. Where did you find that documentation?

#7 buytaert

buytaert

    Lift Off

  • -----
  • Posts: 4
  • Joined: 18 Feb 2019

Posted 25 February 2024 - 11:05 AM

I looked at the spectrum of that filter. I cant see it leta UV in. Where did you find that documentation?

I am not sure that I understand your question... I have no documentation on the original glass filter that is in place. But if it is removed and not replaced by glass with a similar thikcness, the optical lenght is shortened and the sensor should be moved forward to reach focus when used with a lens (not the case if used with a telescope). Therefor I was looking for a replacement glass with a pass between 400nm to 700nm, because I want to keep using my 135mm lens with this camera.

Are you still using your A6000 with a lens ? If so, can you still reach focus without a replacement of the original glass  ?

Regards, Jan


  • Digitaliz.se likes this

#8 Digitaliz.se

Digitaliz.se

    Explorer 1

  • -----
  • Posts: 77
  • Joined: 18 Aug 2021

Posted 25 February 2024 - 01:14 PM

Sorry,
The filter is just letting Oiii and Ha pass. I looked at the spectrum of the filter so it doesnt matte that the camera is full spectrum modded.

#9 GR-Amateur

GR-Amateur

    Ranger 4

  • -----
  • Posts: 356
  • Joined: 15 Sep 2020

Posted 25 February 2024 - 07:33 PM

Some filter need additional filters, some filters don’t need, an example here below. I have this filter (IDAS NB3) and I confirm that shooting with a full spectrum camera without IV/UV cut filter is a mess. Anyhow, filter makers are usually share the band pass charts and clearly state in the specs whether you need or not an additional filter to shoot with.

Attached Thumbnails

  • IMG_3297.jpeg
